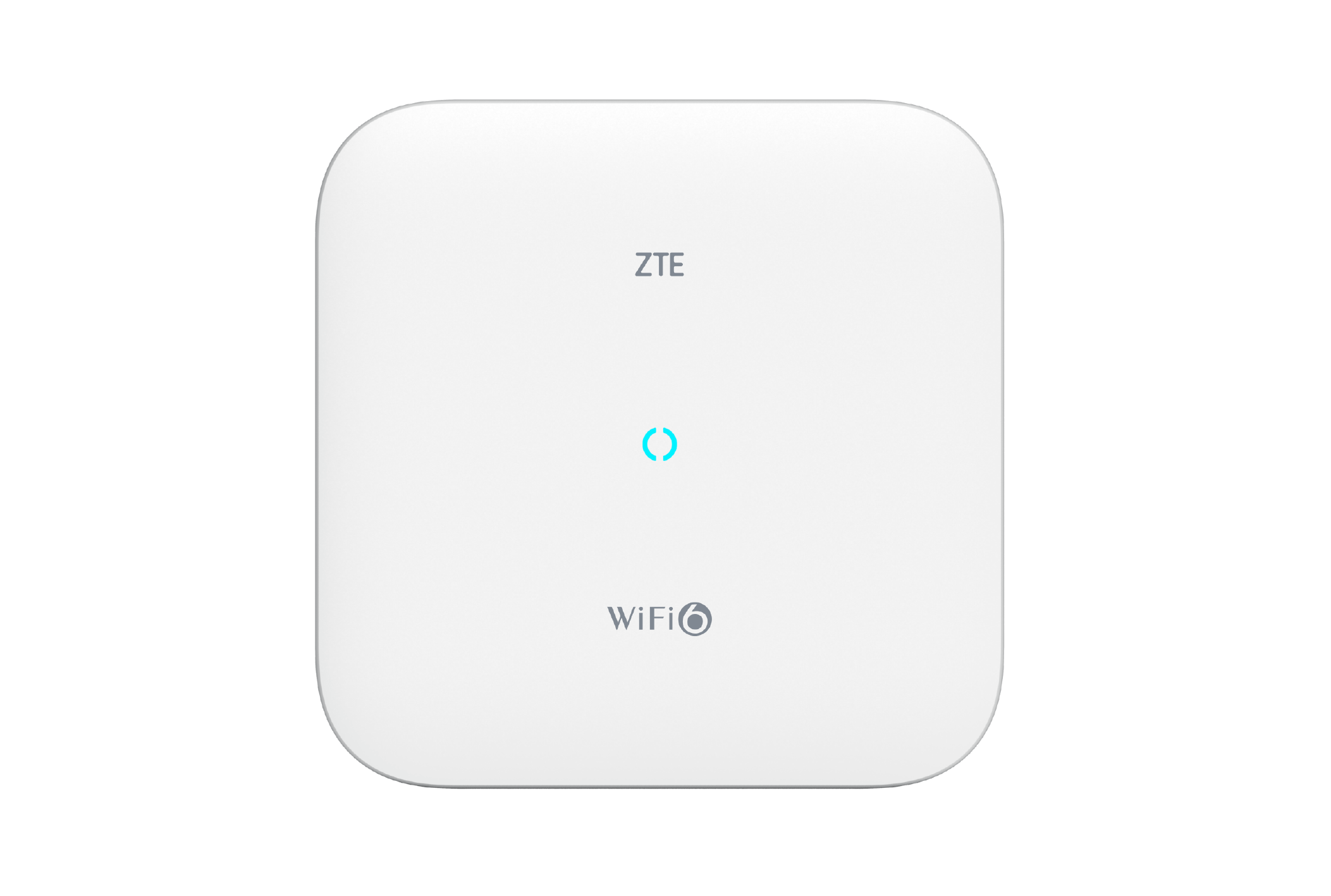

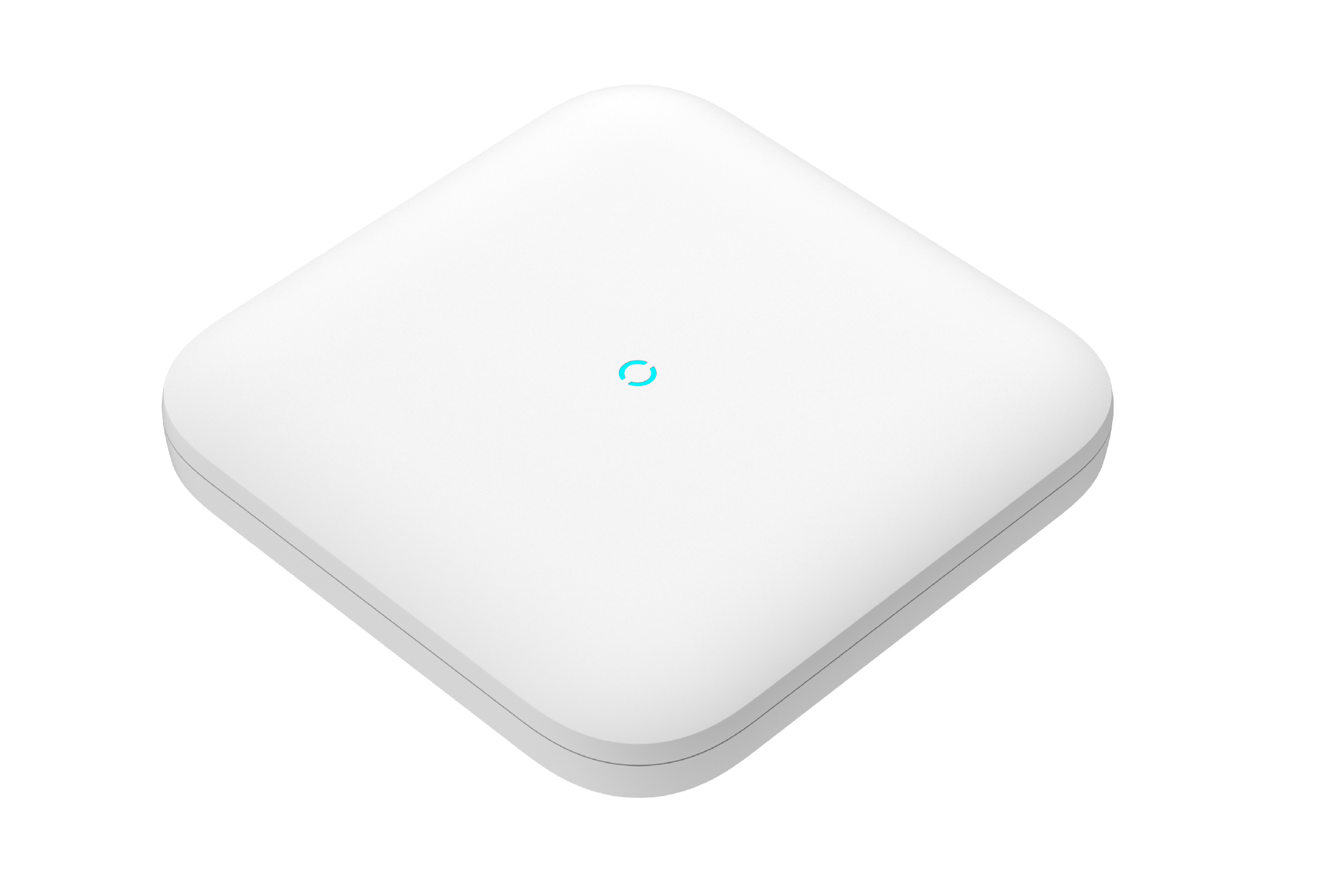

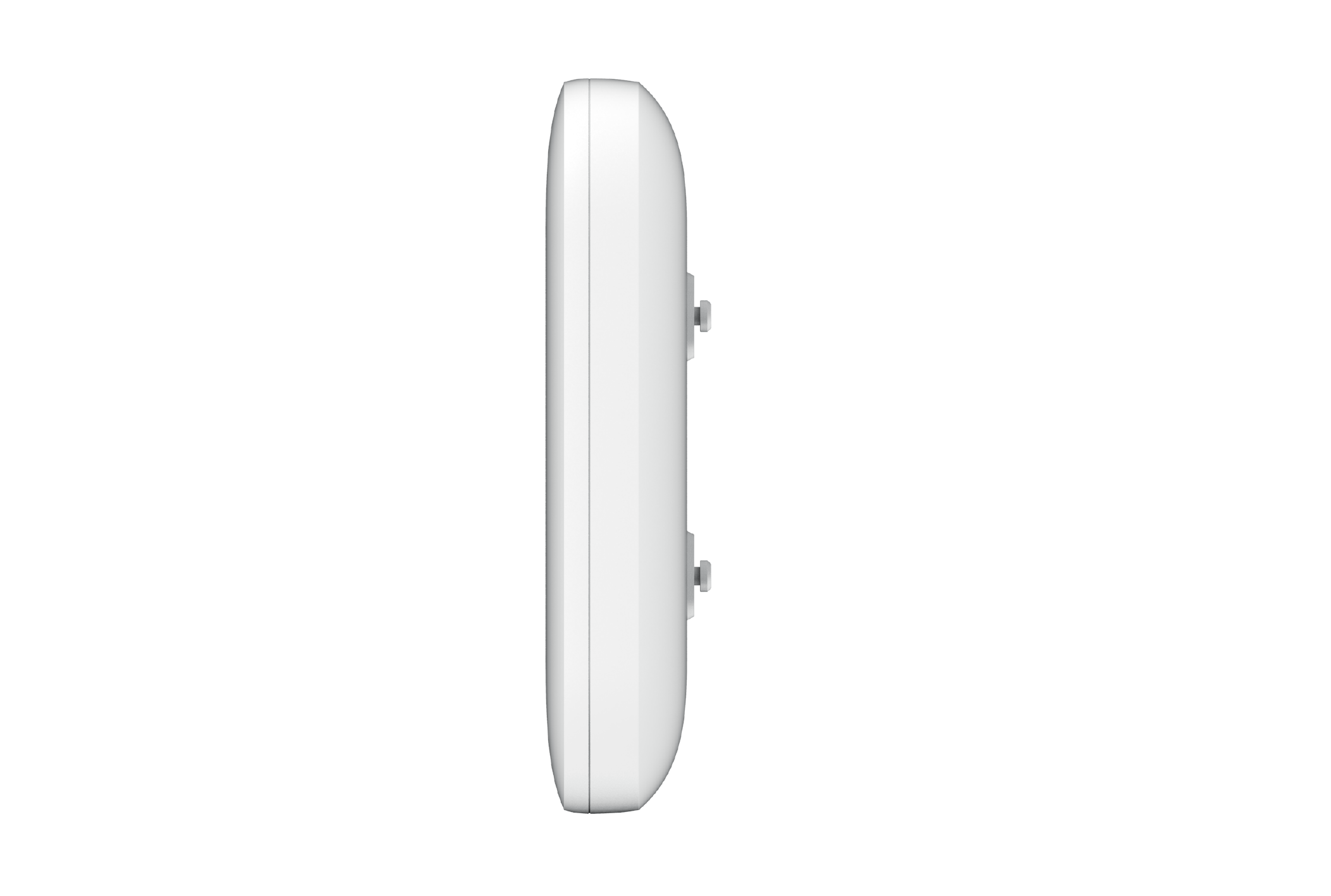

FTTR Ceilling-mounted AP — ZXEN G1660G

The ZXEN G1660G ceiling-mounted AP is an all-optical networking product specially designed for the FTTR-B scenario. It is applicable to street stores, chain stores, commercial buildings, hotels/campus dormitories, and office buildings.

Product Highlights

Multiple Power Supply Modes
· The industry's first ceiling-mount AP. products supports multiple power supply modes such as PoF, PoE, and DC.
Ultimate Wi-Fi Experience
· Mesh Wi-Fi for whole-home Wi-Fi coverage.
· 20ms smart roaming based on 802.11k/v/r.
Multiple Deployment Scenarios

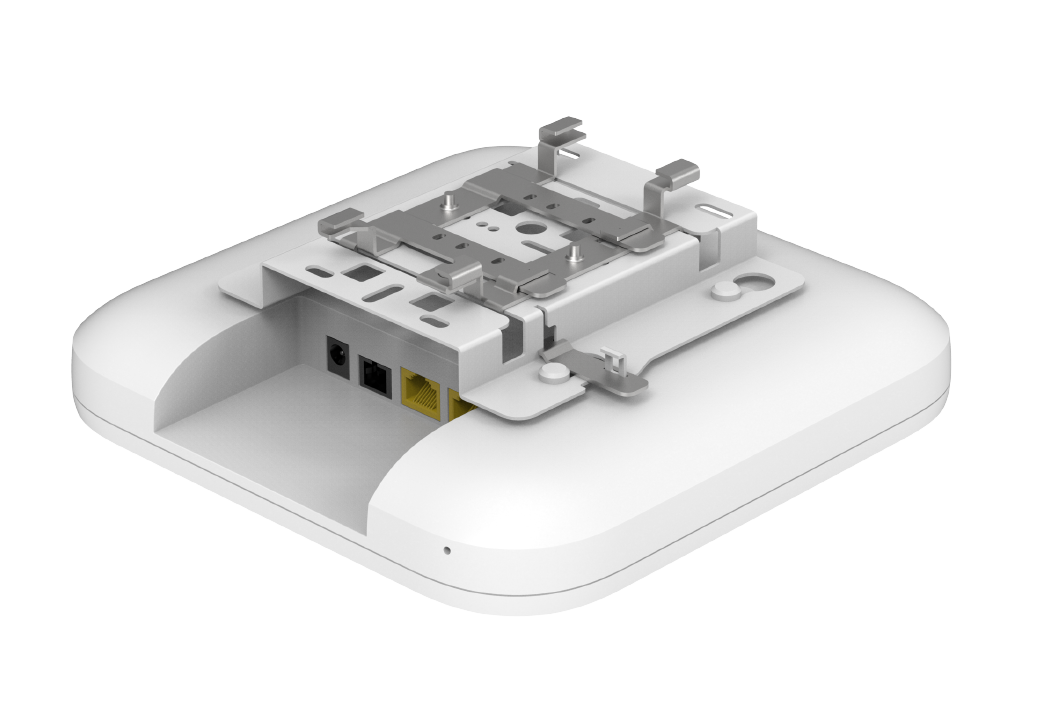

· Supports seven installation scenarios in four ways: ceiling-mounted, wall-mounted, box-mounted, and pole-mounted.
· The innovative design of the product structure has obtained a patent for a utility model.

Product Parameters

WAN
GPON
Dimensions
198 x 198 x 38 mm

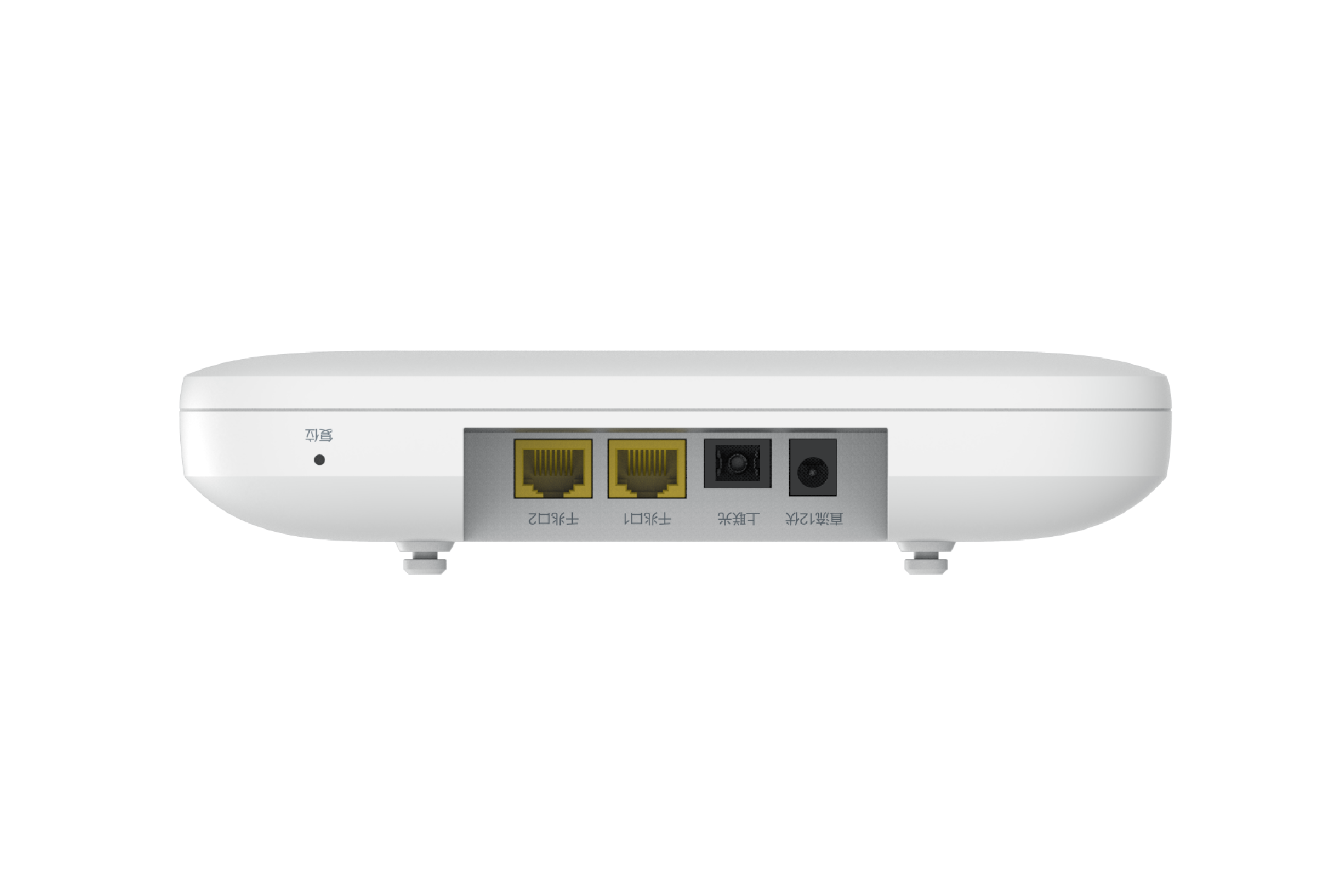

LAN
2 x GE RJ-45 ports
2 x 2 802.11b/g/n/ax @ 2.4 GHz
2 x 2 802.11a/n/ac/ax 160 MHz @ 5 GHz
Key Functions
VPN: L2TP/PPTP/IPsec
Public Wi-Fi/Mesh Wi-Fi
Up to 64 connections
Portal/802.1x authentication
Smart antenna
Smart QoS
Cloud-based remote management (SCP)
ZLife app-based management
