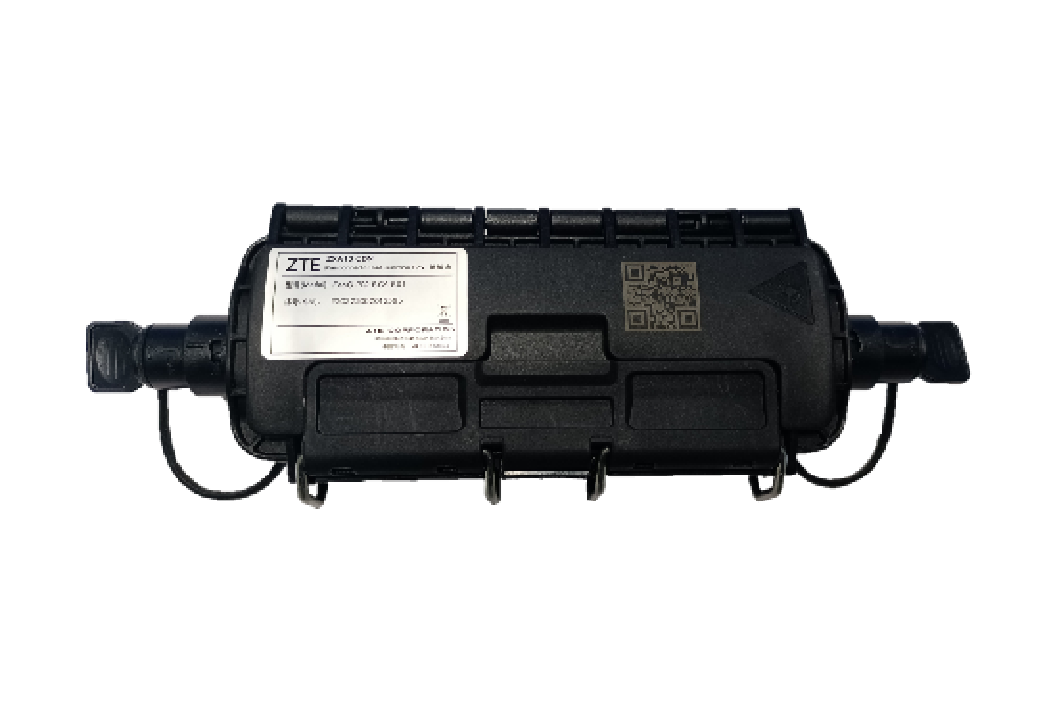

Pre-connectorized Connection Box — FebC-F12

The FebC-F12 is an optical splicing box designed for splicing fibers. It is applicable to the splicing of 1-12 fibers in aerial and duct installation modes. The enclosure is made of enhanced materials with high strength and corrosion resistance.

Product Highlights

: · The enclosure stamped out of premium steel sheet molds has strong mechanical strength

: · Flame retardant rating: UL94 HB

: · Protects the fiber from environmental impacts

: · Small size and easy installation

Product Parameters

Dimensions (L x W x D): 180 x 82 x 50 mm

Material: Reinforced PP + glass fiber

Flame retardant rating: UL94-HB

Capacity (cores): 12

Cable inlet and outlet diameter: 4-8 mm

Sealing: Mechanical sealing

Mount mode: Wall, pole, aerial mount
