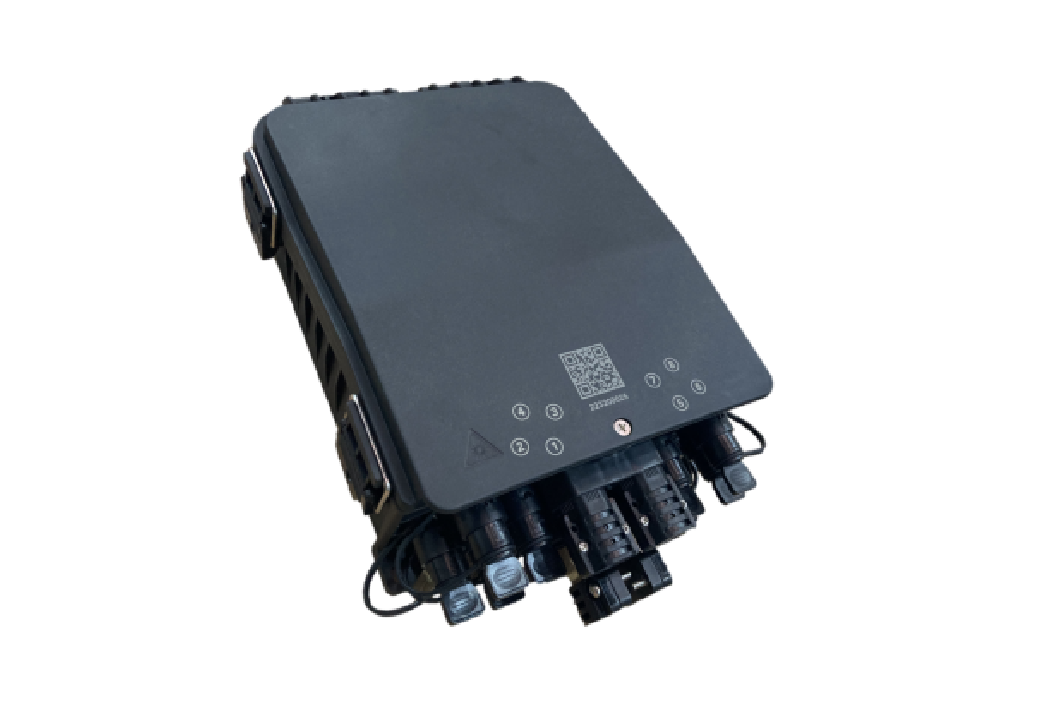

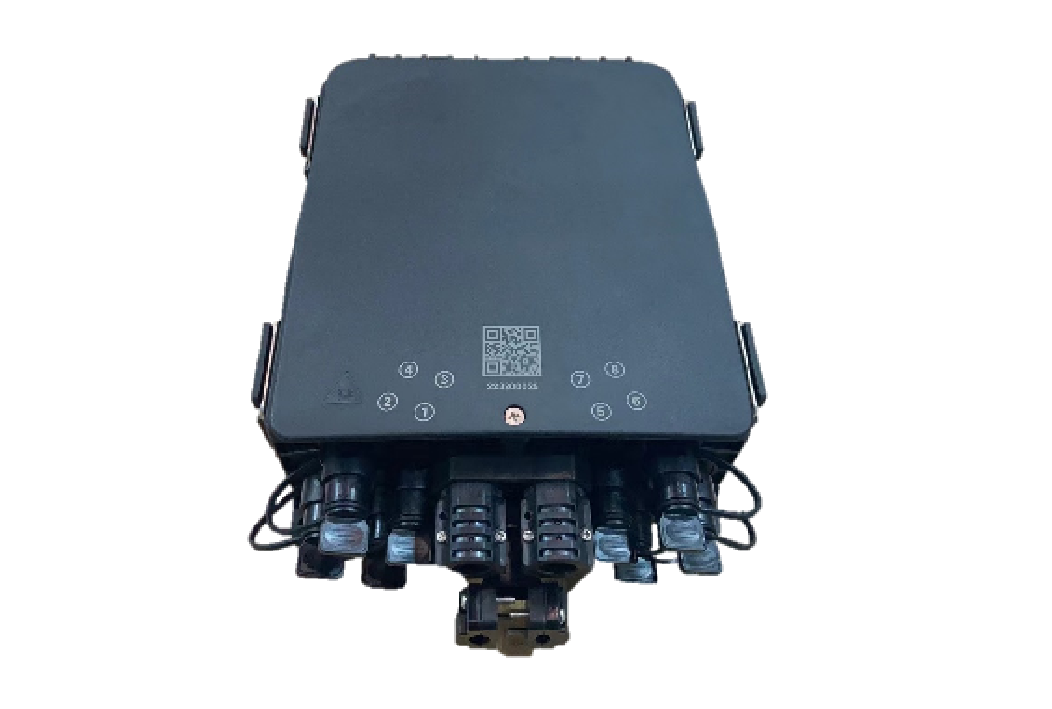

Pre-Connectorized FDT — FebH-H08

The FebH series pre-connectorized fiber distribution terminal is launched for easy and fast access to FTTH networks. It is robust and highly reliable for manhole-mount, aerial-mount and wall-mount deployment. It supports both mid-span cables and branching cables by an easy plug assembly.

Product Highlights

· Supports maximum 4 mini-type 1:2 splitters or 96 cores splicing
· Plug-and-play cable connector for faster and easier operating, compact design
· Fast installation without the need of opening the enclosure frequently
· AI image identification, unique bar code
· Saving 30% of construction time
· IP68 protection rating

Product Parameters

Dimensions (L x W x D)
290 x 210 x 100 mm
Material
Enhanced PP (black)
Capacity
Max. 96 cores, 24 cores/tray x 4 trays
IP rating
IP68
Mount mode
Wall, pole, aerial mount
RoHS
RoHS 2.0 compliant
Sealing
Mechanical sealing
