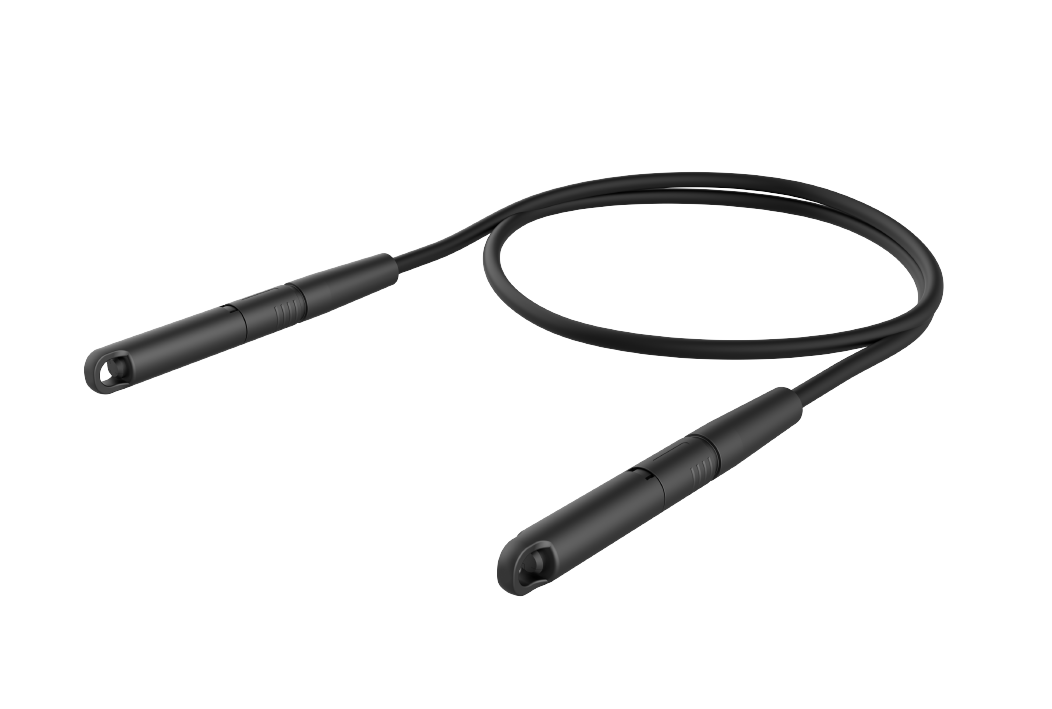

Pre-Connectorized Cable — GPX378-PTH-P-EMPA-EMPA-C6

The GPX378-PTH-P-EMPA-EMPA-C6 series pre-connectorized cables are prefabricated with ZTE new-generation water-proof MPO/SC connectors on both ends of the cable in factory. The connector is compatible with the previous-generation MPO/SC adapter via an adapter.

Product Highlights

· Compact design
· Easy and safety locking
· 12-core MPO connectors or one core SC connector
· Stable performances

Product Parameters

Connector
ZTE ESCA connector
Test wavelength
1550 nm
Insertion loss
≤ 0.2 dB
Return loss
≥ 60 dB
Tension between cable and connector
≥ 300N
Mechanical Life
500 times
Water-proof
IPX8 (3m, 168hrs)
