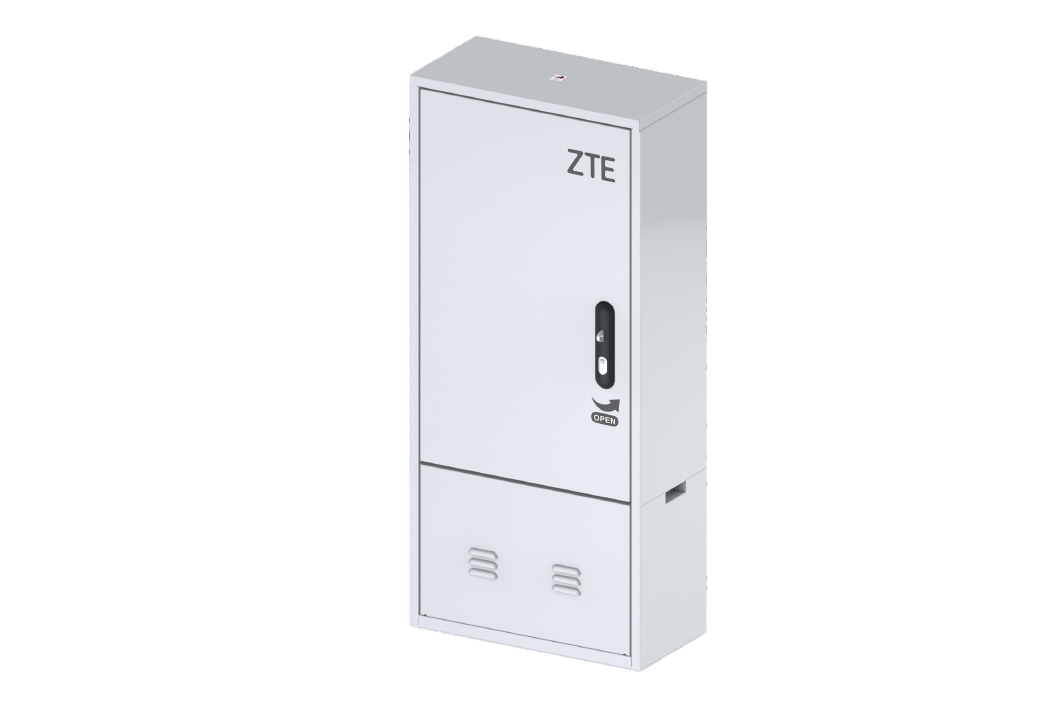

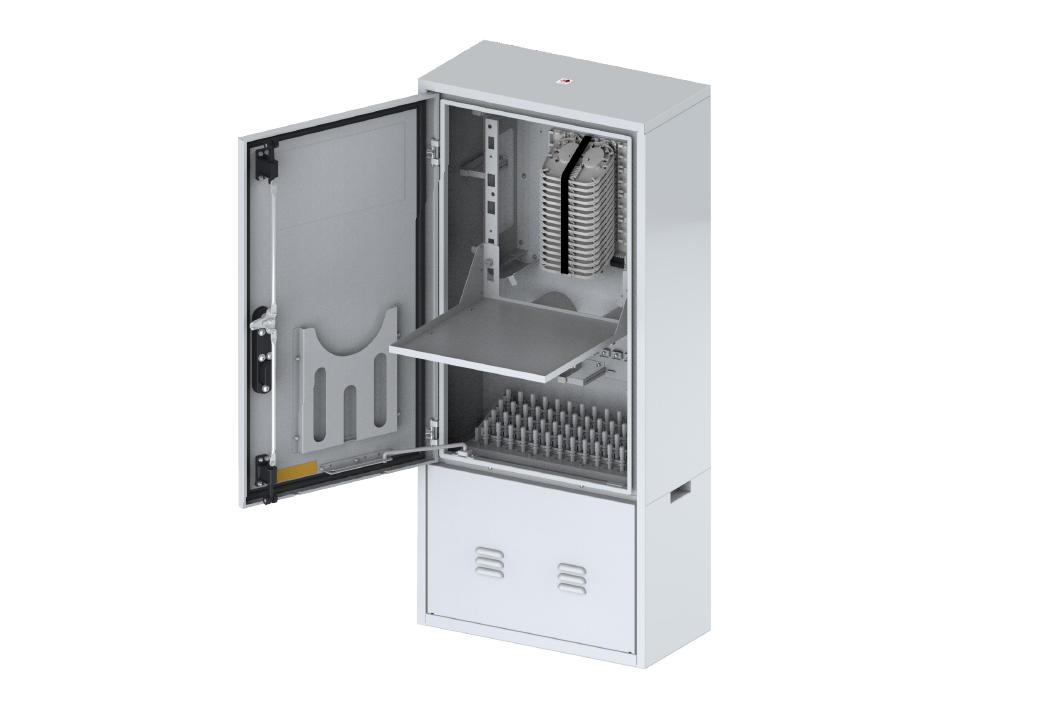

Fiber Distribution Hub — GXF378-OCC-DGAS-1
The GXF378-OCC-DGAS-1 is a fiber distribution hub suitable for outdoor applications above the ground. It supports fixed micro-duct and micro-cable routing management.
Product Highlights
- · Fiber bend radius ≥ 30 mm
- · Total splicing capacity: 96-192 cores, max. 16 pieces splicing/splitter trays
- · Uniform MS17-02 outdoor lock facilitates management and maintenance
- · High-voltage grounding device
- · Insulation resistance: ≥ 1000 MΩ/500V DC
- · Withstand voltage: ≥ 3000 V DC /1min
- · Flame retardant rating: UL94 V-0
Product Parameters
- Mount mode
- Ground, concrete foundation
- Splicing tray
- 12-24 cores for each tray
- Splitter tray
- 1:4, 1:8, 1:16
- Operating temperature
- -40℃ ~ +60℃
- Storage temperature
- -25℃ ~ +70℃
- Operating humidity
- 0% - 95% (+40℃)
- Atmospheric pressure
- 70 kPa - 106 kPa
- IP rating
- IP55
