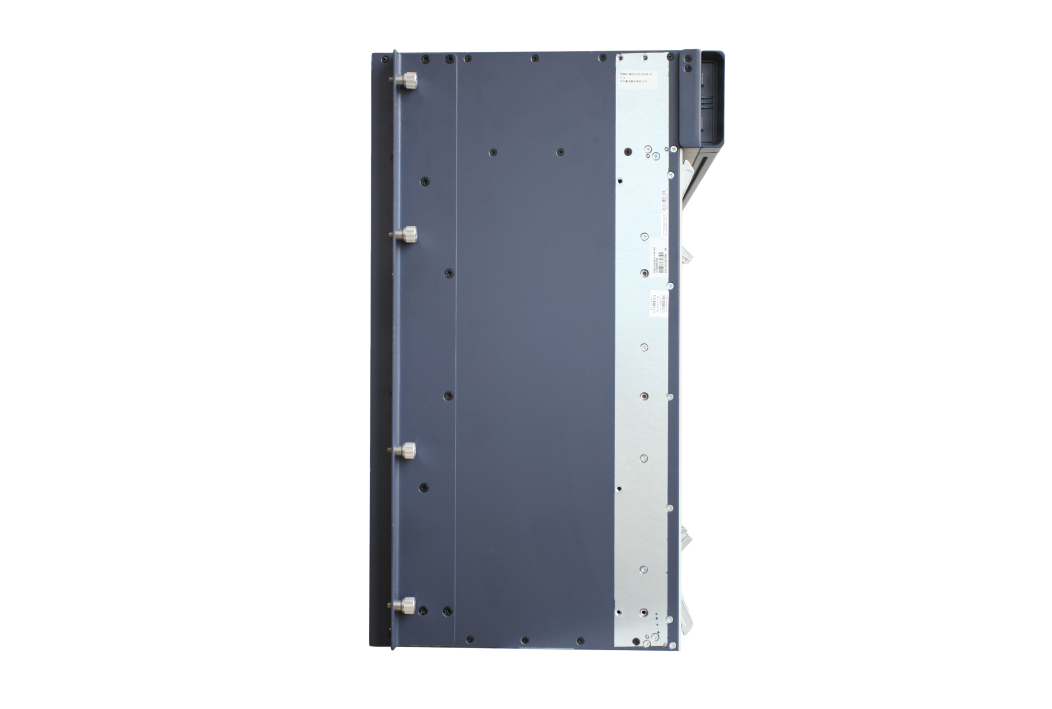

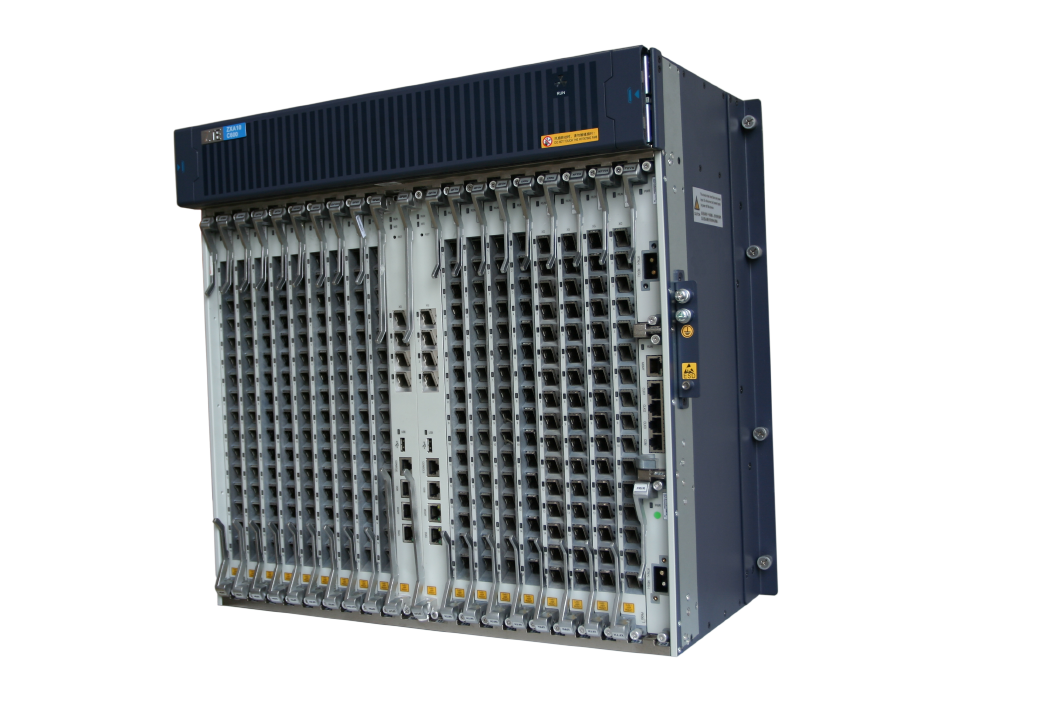

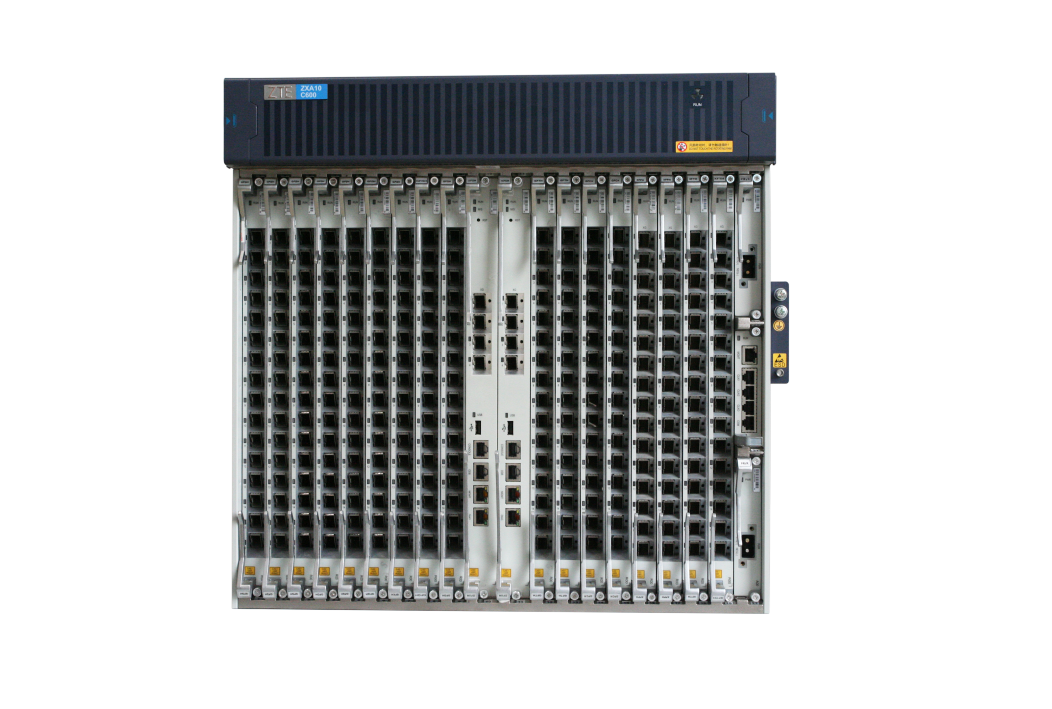

Large-Capacity PON OLT — ZXA10 C600

The ZXA10 C600 is a large-capacity optical access platform with a leading-edge industrial design and a state-of-the-art fully-distributed and programmable router architecture that supports 4K/8K/VR, FMC, and SDN/NFV/virtualization in a wide range of scenarios. The ZXA10 C600 offers two chassis options: 11U 19-inch and 11U 21-inch.

Product Highlights

Fully-distributed architecture
· High-end router, non-blocked forwarding
· Built-in NP for easy upgrade
1 platform in support of 3-gen technologies
· Smooth migration
· Extending the service life of OLT by two times
Industry's first 16-port 10G PON/Combo PON
· 5-in-1 chip, 16-port per chip, industry's highest density
· 31.8% less power consumption than the CoC v8
Powerful capability
· Industry's first built-in blade
· NetConf/YANG, telemetry, SDN oriented

Product Parameters

Dimensions (H x W x D)
21" chassis: 486.1 x 535 x 288.5 mm
19" chassis: 486.1 x 482.6 x 288.5 mm
Access Features
272/240 x GPON, 10G PON, Any-PON or Combo PON ports
Uplink Interface Cards
16/8 x 10GE uplink per card
2 x 100GE uplink per card
Subscriber Card
16 x GPON/XG-PON/XGS-PON/Combo PON/Any-PON ports per card
16 x 10GE P2P per card
24/48 x GE P2P per card
Environmental Conditions
Operating temperature: -40℃ ~ +65℃
Operating humidity: 5% - 95%, non-condensing
Power Supply
Operating voltage: -48 V (± 20%), or -60 V (± 20%)
