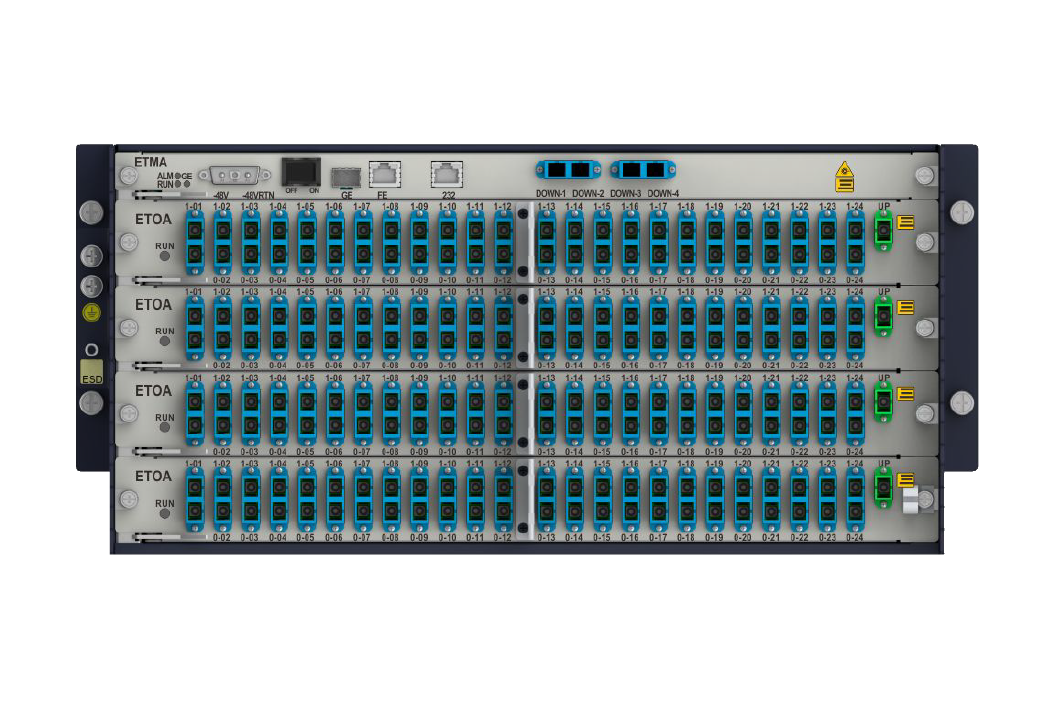

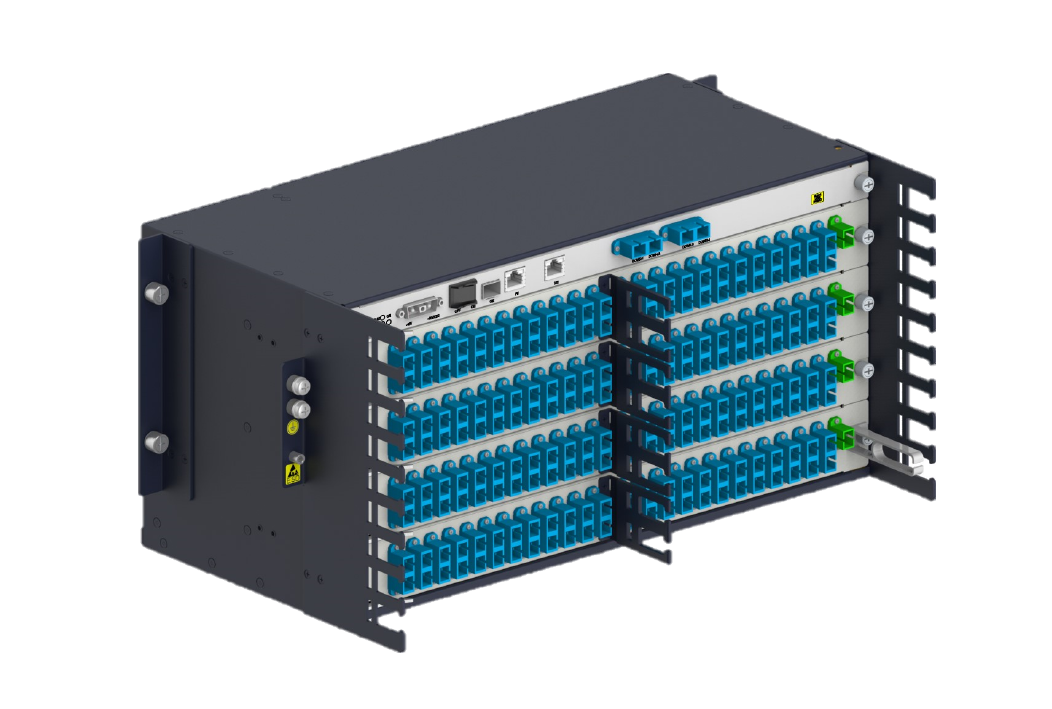

Fiber Monitoring Unit — ZXA10 eOMU510

The ZXA10 eOMU system monitors the health of optical networks. It can be applied in optical access networks, optical mobile backhaul networks, optical backbone networks, and optical data centers. It includes an eOMU software platform and a hardware platform, and supports seamless interconnection with the upper-layer NMS through northbound interfaces.

Product Highlights

· Centralized fiber monitoring
· Rapid and precise fault detection and location
· Various detection methods
· Real-time online fault monitoring
· Smart identification of fiber events
· Visual fault location
· Comprehensive system interfaces

Product Parameters

Pulse range
2.5 ns - 20 μs
Pulse peak power
≤ 15 dBm
Dynamic range
12 dB (10 ns pulse width)
21 dB (100 ns pulse width)
40 dB (20 μs pulse width)
Event resolution
≤ 1 m
Event blind zone
≤ 1 m
Attenuation blind zone
≤ 2 m
P2MP network test distance
≥ 20 km
P2P network test distance
≥ 120 km
Measurement error
< 1 m
Test Time
0-15 minutes
