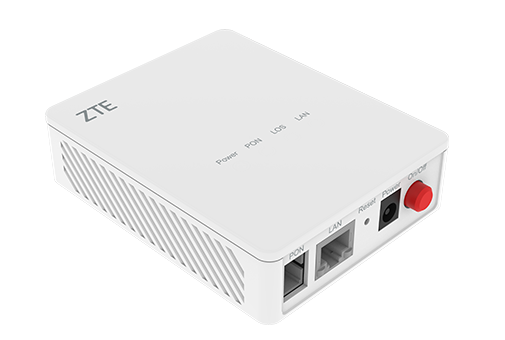

GPON Bridge ONT — ZXHN F601

The ZXHN F601 is an ITU-T G.984.x and G.988 compliant GPON Optical Network Terminal (ONT) that provides one 10/100/1000 Mbps Ethernet port for FTTH scenarios and a GPON port in support of 2.488 Gbps downstream and 1.244 Gbps upstream. It provides a GE port to connect PCs or notebooks, and can work with an RG to provide service assurance for video and high-speed Internet access.

Product Highlights

High Reliability
· The ZXHN F601 provides full-service access, high bandwidth, high performance, and high reliability to meet customers' evolving requirements.
Green Design
· Automatically switches to energy-saving mode according to idle status of the port.
· Complies with the CoC V7.0.
· Materials are RoHS-compliant.
Easy Operation and Maintenance
· Remote batch upgrade, fault diagnosis, port loopback, and link detection via the OMCI.
· Supports offline configuration, batch configuration, zero-touch field configuration, and automatic service provisioning.

Product Parameters

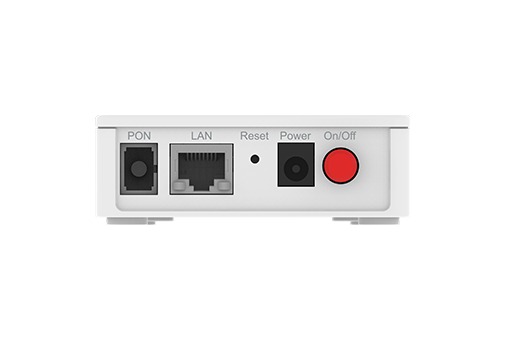

WAN
GPON
LAN
1 x GE RJ-45 port
Buttons
On/Off, Reset
Power Supply
AC adapter: 12 VDC, 1.0A
LEDs
Power, PON, LOS, LAN
Dimensions (W x H x D)
100 x 80 x 26 mm
Operating Temperature
0℃ ~ +40℃
Humidity
5% - 95% (non-condensing)
Certification
CE certification
