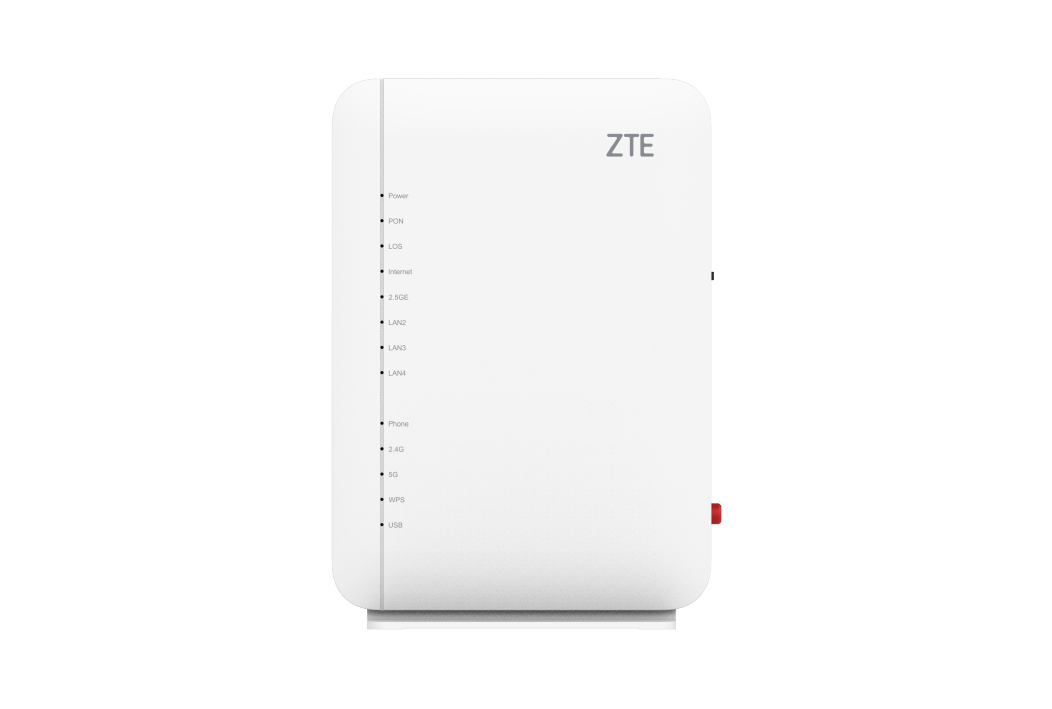

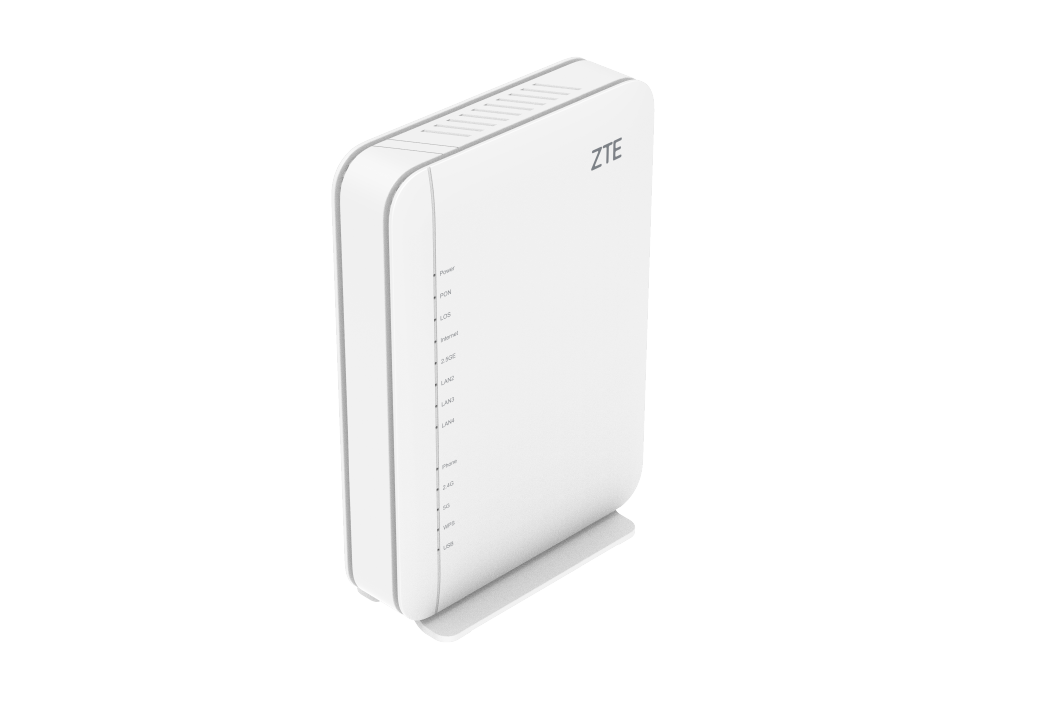

BE7200 Dual-Band Wi-Fi 7 GPON ONT — ZXHN F6745

The ZXHN F6745 is a BE7200 dual-band Gigabit premium triple-play GPON gateway that provides one 2.5GE LAN port, three GE LAN ports, one phone port, and dual-band 4 x 4 Wi-Fi 7. The ZXHN F6745 supports high bandwidth, low latency and multiple connections, meeting the Wi-Fi requirements of the home scenarios and small-sized enterprise scenarios.

Product Highlights

2.5GE Gigabit Speed
· The 2.5GE LAN port brings higher throughput
More Flexible Management
· Complies with ITU-T G.988 OMCI
· Complies with TR-069 management
Ultimate Wi-Fi 7 Experience
· Higher-order 4096-QAM modulation brings better concurrency and higher efficiency.
· Dual-band Wi-Fi 7 speed up to 7200 Mbps Band steering and smart roaming optimize QoS.

Product Parameters

WAN
GPON
LAN
1 x 2.5GE RJ-45 port
3 x GE RJ-45 ports
1 x FXS RJ-11 port
1 x USB 2.0 port
4 x 4 802.11b/g/n/ax/be Wi-Fi @ 2.4 GHz
4 x 4 802.11a/n/ac/ax/be Wi-Fi @ 5 GHz
Buttons
Wi-Fi, WPS, Reset, Power On/Off
Power Supply
AC adapter: 12 VDC, 2.0A
LEDs
Power, PON, LOS, Internet, Phone, 2.5GE, LAN2, LAN3, LAN4, Wi-Fi, WPS, USB
Dimensions (W x H x D)
150 x 210 x 41 mm
Operating Temperature
0℃ ~ +40℃
Humidity
5% - 95% (non-condensing)
Certification
CE, RoHS, Wi-Fi 7 certification ready
