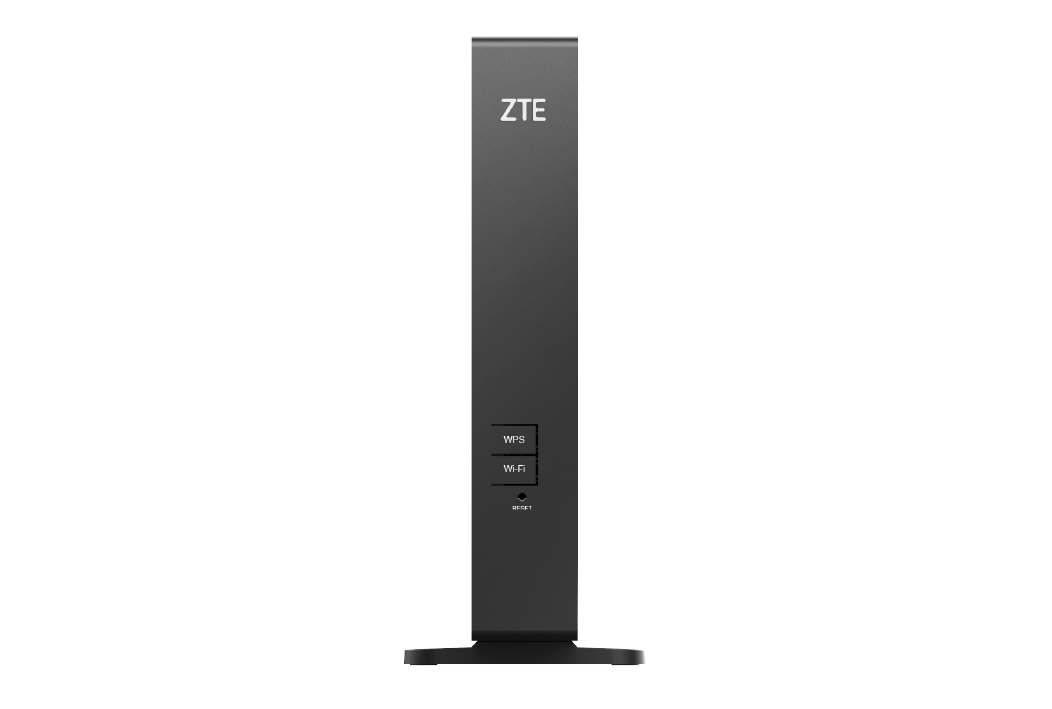

AX10800 Tri-Band Wi-Fi 6E XGS-PON ONT — ZXHN F8648Q

The ZXHN F8648Q is an AX10800 tri-band XGS-PON gateway that supports 160MHz @5GHz and 6GHz. It is designed for high-end home users and provides one 10 GE port, four GE LAN ports, two phone ports, and one USB 3.0 port. It leverages the MU-MIMO and OFDMA technologies to significantly improve efficiency of Wi-Fi networks, allowing users to surf the internet, watch videos, and enjoy high-speed Internet access.

Product Highlights

10 Gigabit Speed
· XGS-PON and 10GE LAN bring 10Gbps bandwidth experiences.
More Flexible Management
· Complies with ITU-T G.988 OMCI
· Complies with TR-069 management
Ultimate Wi-Fi Experience with Wi-Fi 6E
· DL/UL MU-MIMO, OFDMA and Beamforming bring better concurrency and higher efficiency.
· Supports 160MHz @5GHz&6GHz, up to 11000 Mbps.
· Band steering and smart roaming optimize QoS.
· Provides ultimate experience for gigabit broadband applications.

Product Parameters

WAN
XGS-PON
LAN
1 x 10GE + 4 x GE RJ-45 ports
2 x FXS RJ-11 ports
1 x USB 3.0 port
4 x 4 802.11b/g/n/ax Wi-Fi @2.4GHz
4 x 4 802.11a/n/ac/ax Wi-Fi 160MHz @5GHz
4 x 4 802.11a/n/ac/ax Wi-Fi 160MHz @6GHz
Buttons
Wi-Fi, WPS, Reset
Power Supply
AC adapter: 12 VDC, 3.0A
LEDs
Power, PON, ALARM, Internet, LAN, Phone, Wi-Fi, WPS, Wi-Fi 6, USB
Dimensions (W x H x D)
210 x 205 x 37 mm
Operating Temperature
0℃ ~ +40℃
Humidity
5% - 95% (non-condensing)
Certification
CE, Wi-Fi 6
