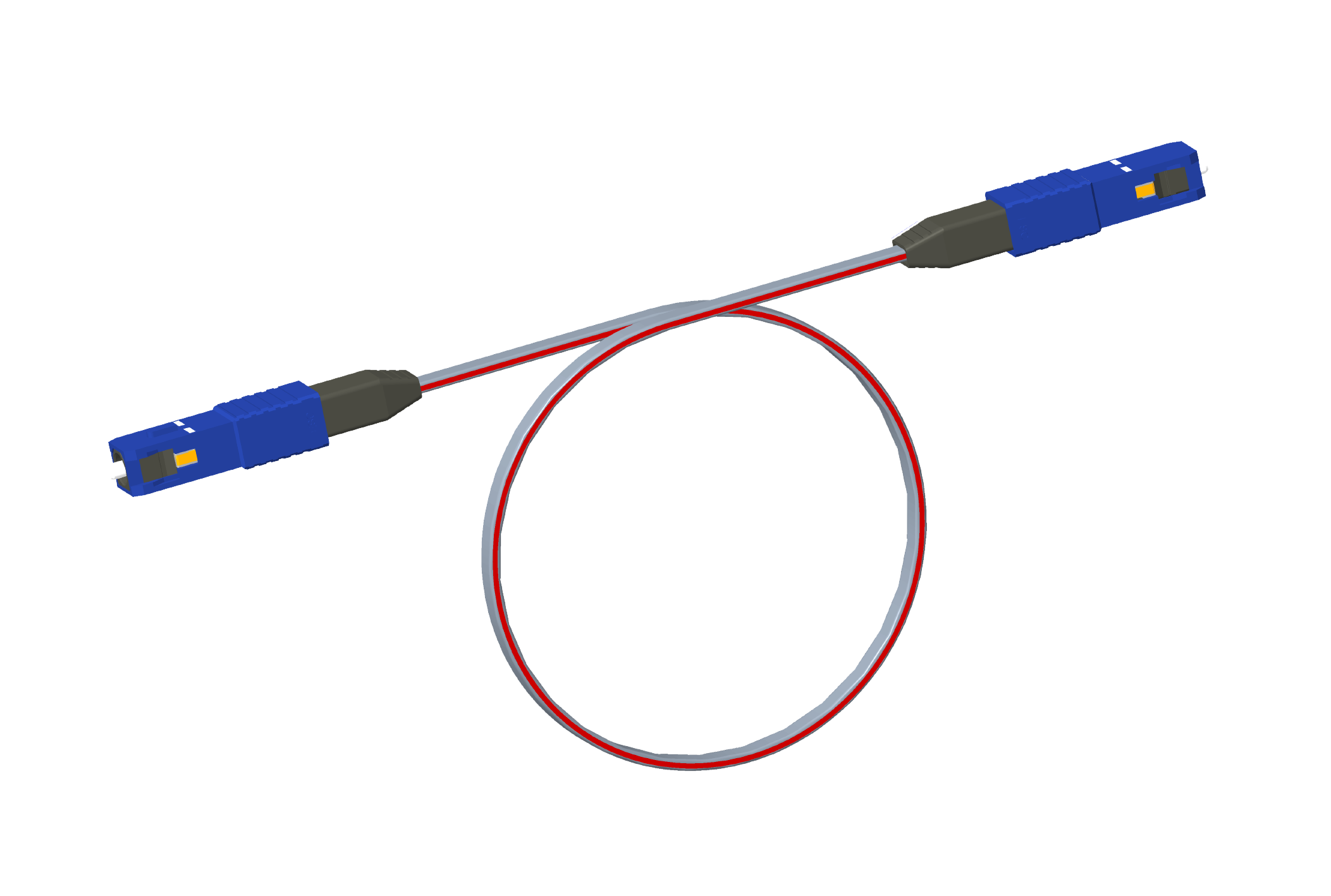

18AWG Optical Electrical Hybrid Patchcord

The ZTE 18AWG optical electrical hybrid patchcord contains one fiber and two copper conductors. The fiber is used for system communication, and the copper conductors are used for remote power supply.

Product Highlights

: · Integrated broadband service and power supply in one cable

: · ESC connectors for service and power connection

: · High reliability and environmental resistance

Product Parameters

Insertion loss: ≤ 0.3 dB

Return loss: ≥ 50 dB

Cable dimensions (H x W): 2.2 x 5.3 mm

Copper conductors: 7 x 0.38 mm
