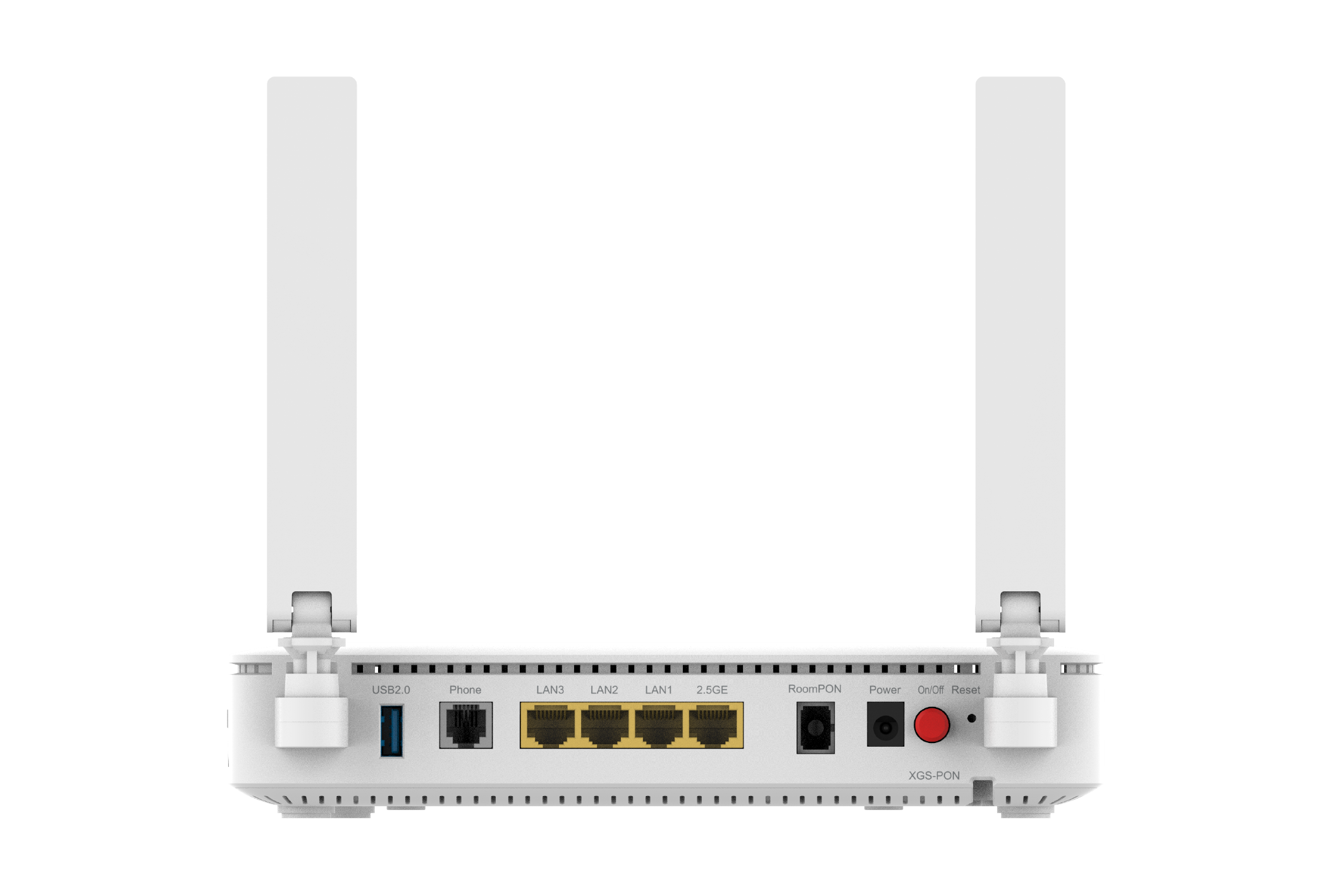

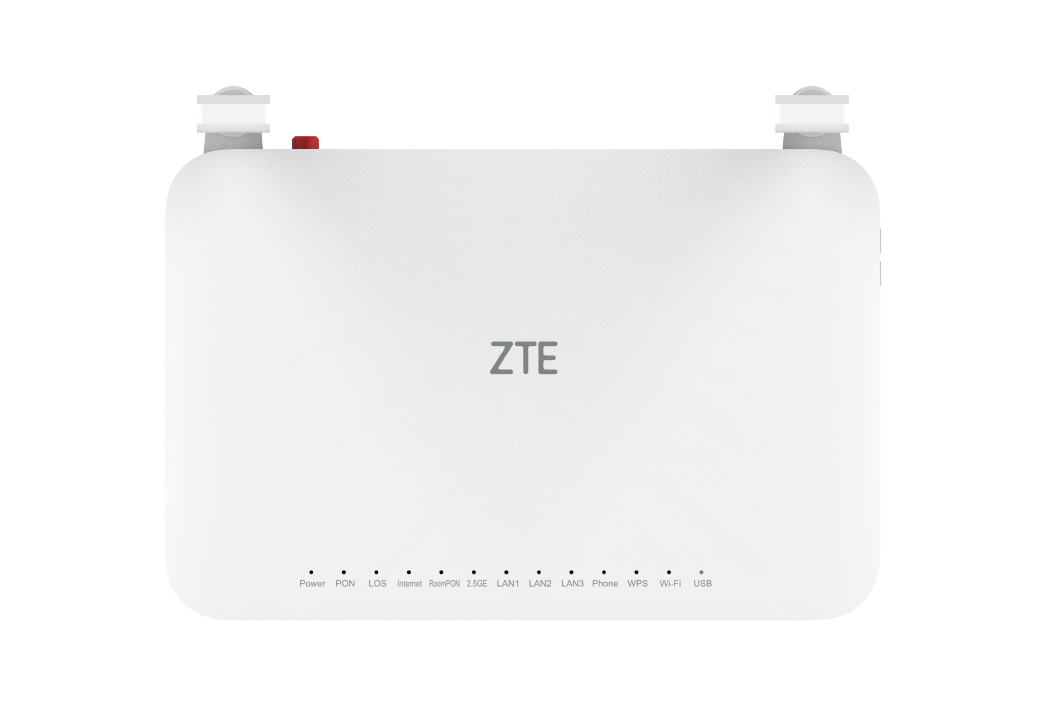

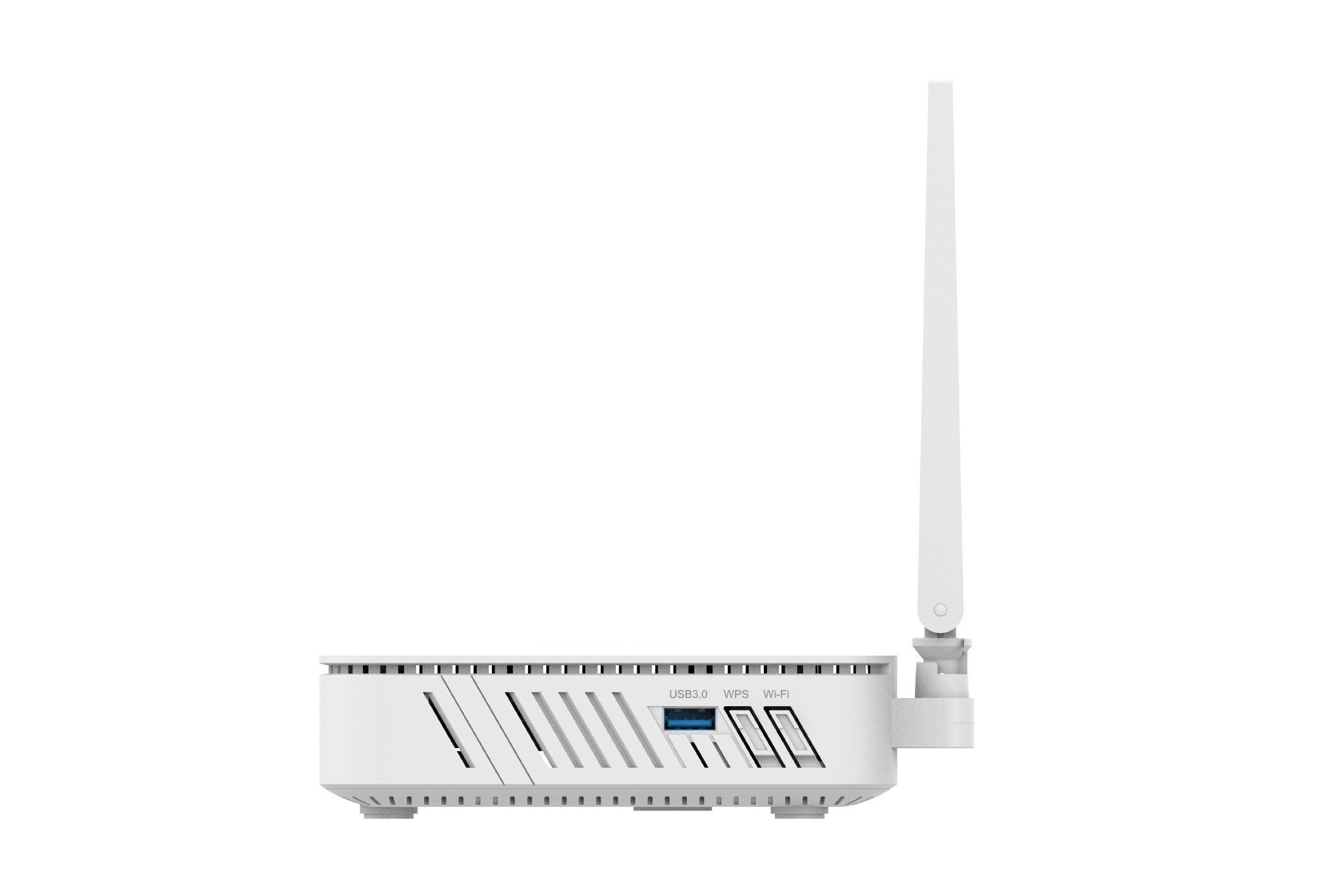

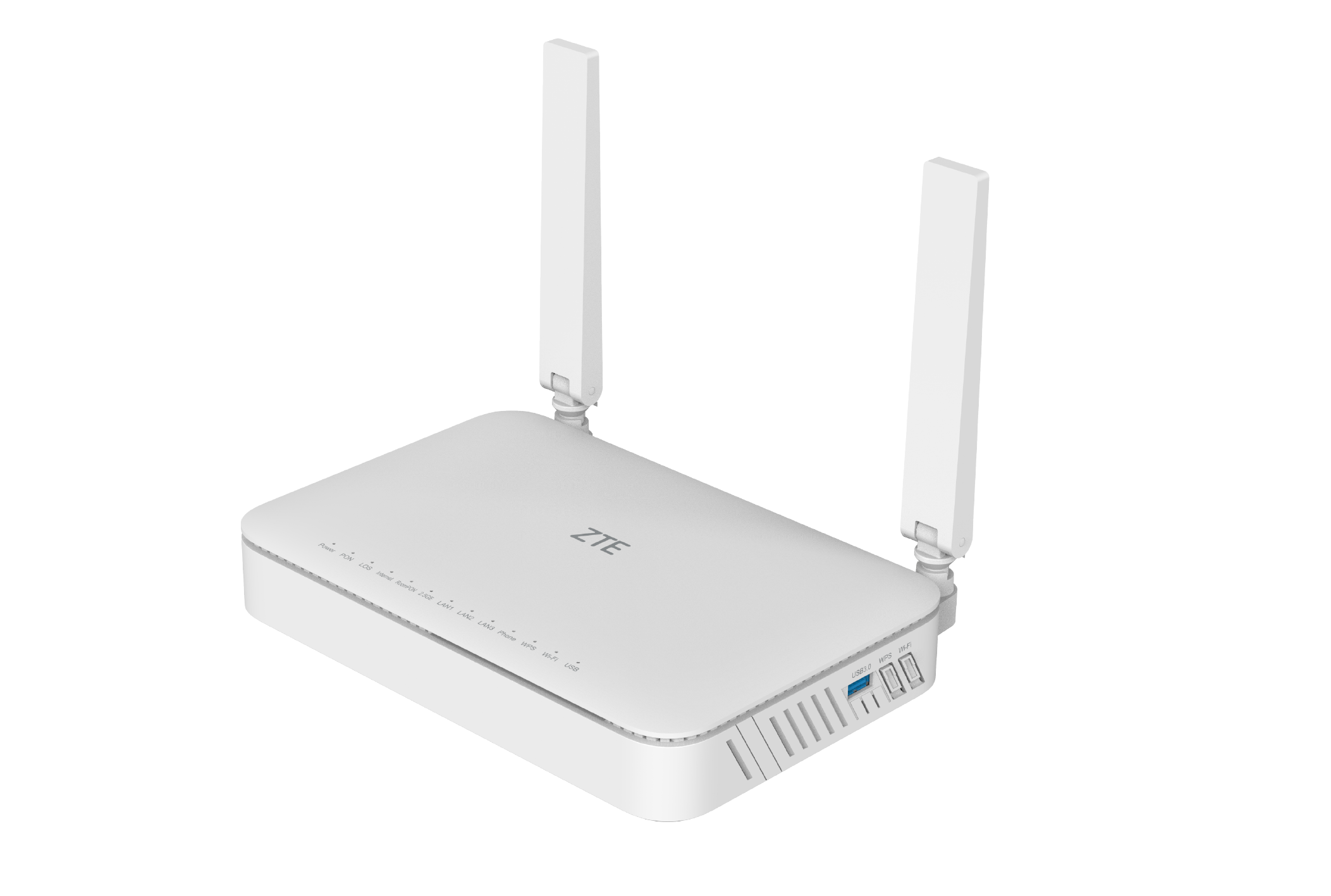

FTTR XGS-PON Main ONT — ZXHN G8605

The ZXHN G8605 is an AX3000 dual-band XGS-PON gateway, supporting 160MHz @5GHz. It is well suited to Fiber To The Room(FTTR) scenario. It has one 2.5 GE port, three GE LAN ports, one phone port, one USB ports and one RoomPON port. It can form a mesh network with a maximum of 32 FTTR APs to realize whole-home gigabit+ Wi-Fi coverage.

Product Highlights

Three-Network Central Controller: · Works as the "optical + wireless + voice" three-network central controller with built-in mini OLT, Wi-Fi controller, and mini PBX to meet the integrated services requirements.

High Speed Broadband Access: · Up to 10Gbps symmetrical data rate for ultra high speed broadband access.
· One 2.5GE and three GE ports provide a better video and gaming experience.

Ultimate Wi-Fi Experience: · Dual-band speed up to 3000 Mbps.
· 160MHz @5GHz.
· DL/UL MU-MIMO, OFDMA, and beamforming bring better concurrency and higher efficiency.

Product Parameters

WAN: XGS-PON

Dimensions: 220 x 145 x 41 mm

LAN: GPON
1 x 2.5GE RJ-45 port (LAN/WAN)
3 x GE RJ-45 ports
1 x FXS RJ-11 port
1 x USB 2.0 + 1 x USB 3.0
2 x 2 802.11b/g/n/ax @2.4GHz
2 x 2 802.11a/n/ac/ax 160MHz @5GHz

Key Functions: Up to 16 splitting, 128 STAs concurrent
Mini PBX for room ONT
Mesh Wi-Fi with smart roaming
Parent control/Smart QoS
Cloud remote management(SCP)
ZLife APP management
