AX1800 Dual-Band Wi-Fi 6 VDSL2 35b HGW — ZXHN H1600

The ZXHN H1600 is a Gigabit/VD2 35b dual-band Wi-Fi 6 RG with 4 gigabit Ethernet LAN ports. It leverages the HEW Wi-Fi 6 technology to provide higher bandwidth and be more forward-looking, delivering ultimate Wi-Fi experiences to users. The ZXHN H1600 provides a gigabit Ethernet WAN port, making it perfectly suitable for the deployment in FTTH scenarios, allowing users to flexibly access the Internet.

Product Highlights

Multiple WAN Access
· 35b VDSL2 provides over 300 Mbps broadband access
· Auto WAN sensing among VDSL2/ADSL and GE
More Flexible Management
· Complies with TR-069 remote management
· WEB GUI based remote and local management
Highly Efficient Wi-Fi 6
· DL/UL MU-MIMO and OFDMA enable high efficiency
· Dual-band concurrent Wi-Fi 6 speed up to 1800 Mbps

Product Parameters

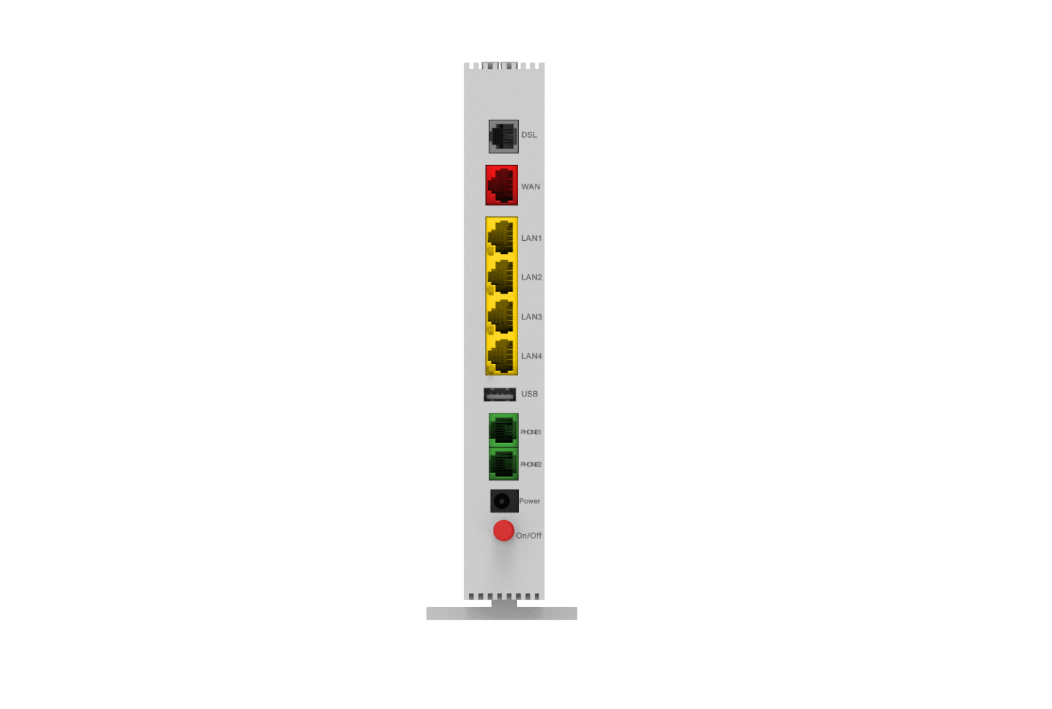

WAN
VDSL2/ADSL2+, GE
LAN
4 x GE RJ-45 ports
2 x 2 802.11b/g/n/ax Wi-Fi @2.4GHz
2 x 2 802.11a/n/ac/ax Wi-Fi @5GHz
2 x FXS RJ-11 ports
1 x USB 2.0 port
Buttons

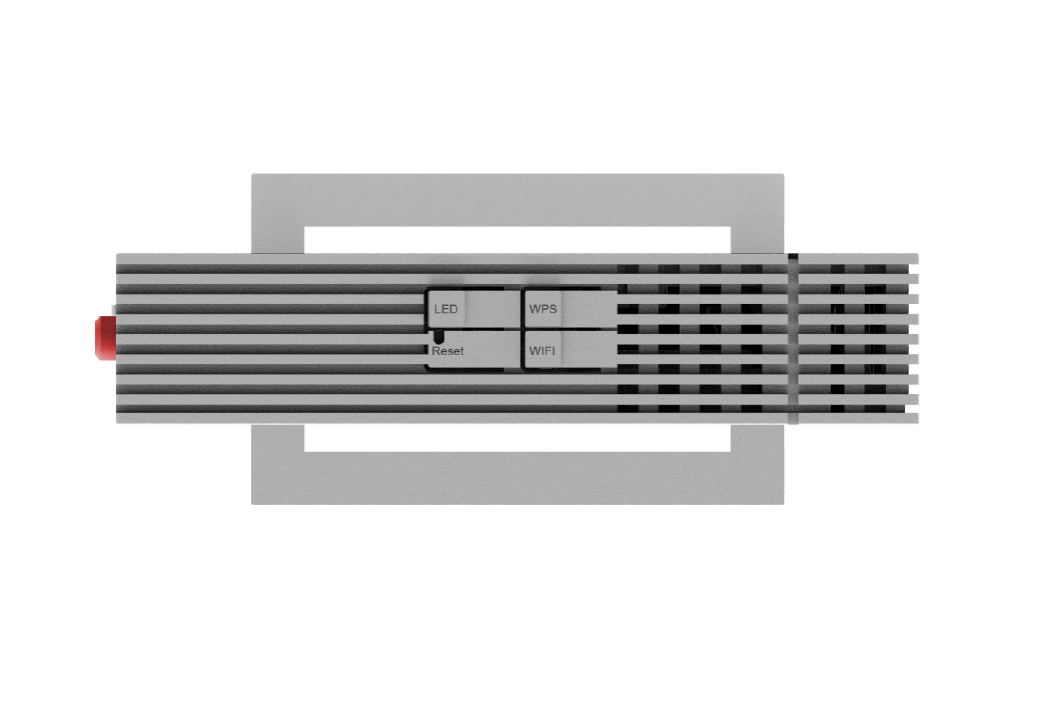

LED, Wi-Fi, WPS, Reset, On/Off
Power Supply
AC adapter: 12 VDC, 2.0A
LEDs

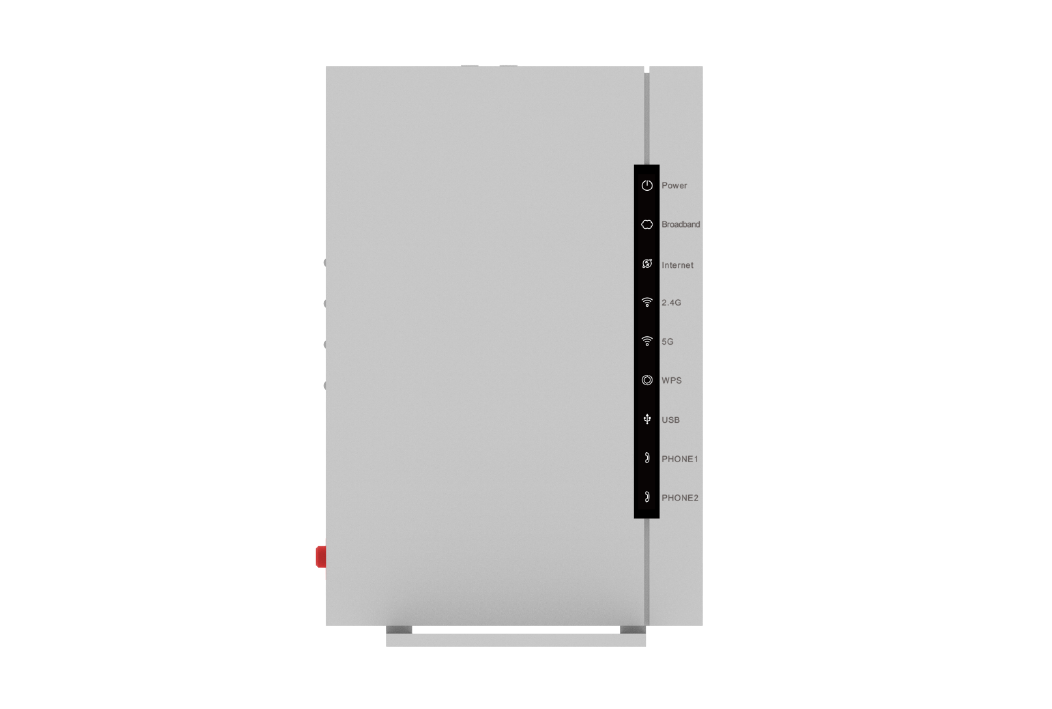

Power, Broadband, Internet, 2.4G, 5G, WPS, USB, Phone1, Phone2
Dimensions (W x H x D)
156 x 32 x 226 mm
Operating Temperature
0℃ ~ +40℃
Humidity
5% - 95% (non-condensing)
Certification
CE, Wi-Fi
