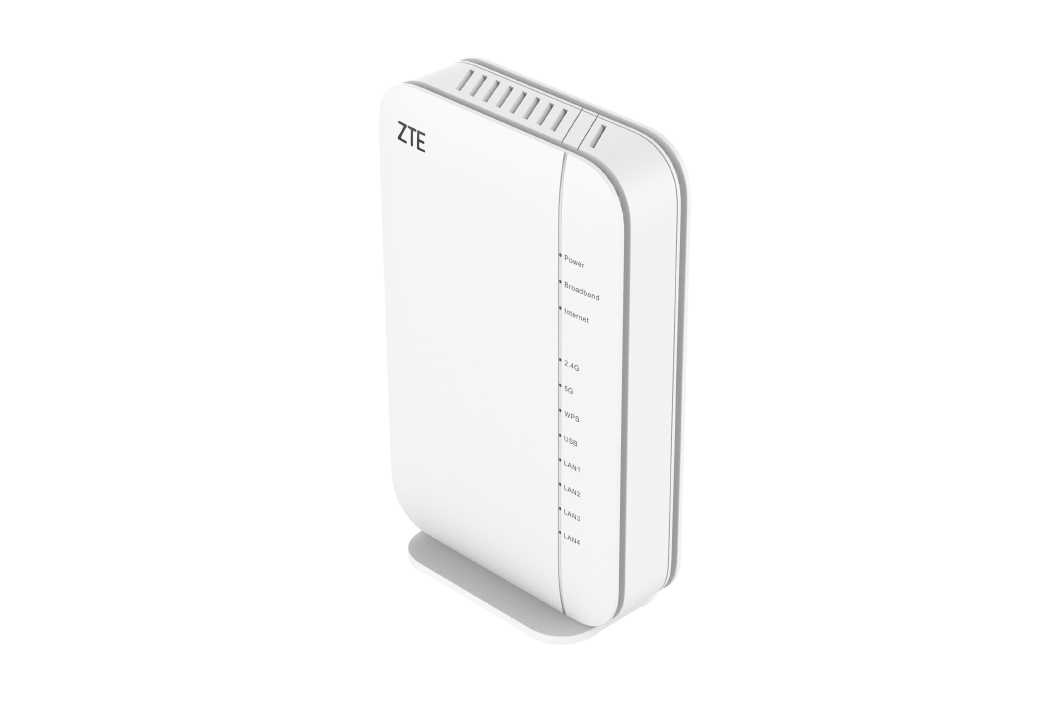

AX1800 Dual-Band Wi-Fi 6 VDSL2 HGW — ZXHN H1601

The ZXHN H1601 is an advanced multi-uplink Wi-Fi 6 (802.11ax) VDSL2 35b router, supporting 1800 Mbps dual-band concurrent. It provides four gigabit LAN ports, delivering higher bandwidth and be more forward-looking. The ZXHN H1601 can provide high-speed Internet access and IPTV services through the GE WAN Ethernet and DSL uplink.

Product Highlights

Multiple WAN Access
· 35b VDSL2 provides over 300 Mbps broadband access
· Auto WAN sensing among ETH/VDSL2/ADSL
· Supports USB 3G/4G dongle backup
More Flexible Management
· TR-069 protocol remote management
· WEB GUI based remote and local management
Highly Efficient Wi-Fi
· DL/UL MU-MIMO and OFDMA enable high efficiency
· Dual-band concurrent Wi-Fi 6 speed up to 1800 Mbps

Product Parameters

WAN
VDSL2/ADSL2+, GE (LAN4)
LAN

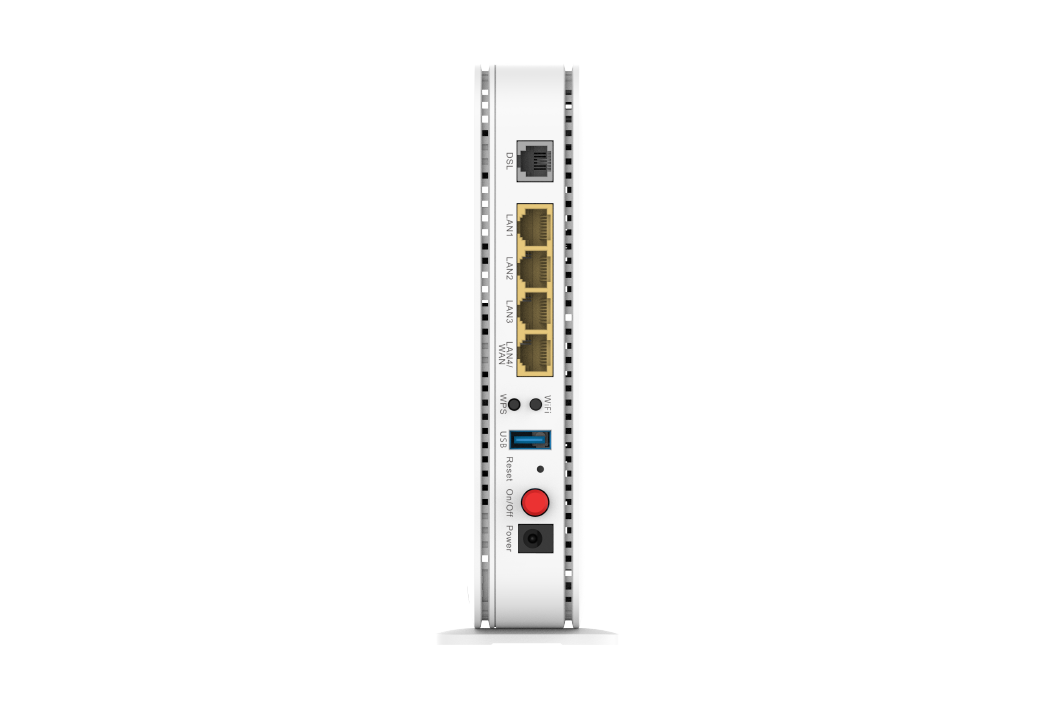

4 x GE RJ-45 ports (Configurable WAN)
2 x 2 802.11b/g/n/ax Wi-Fi @2.4GHz
2 x 2 802.11a/n/ac/ax Wi-Fi @5GHz
1 x USB 2.0 port
Buttons
Wi-Fi, WPS, Reset, On/Off
Power Supply
AC adapter: 12 VDC, 1.5A
LEDs

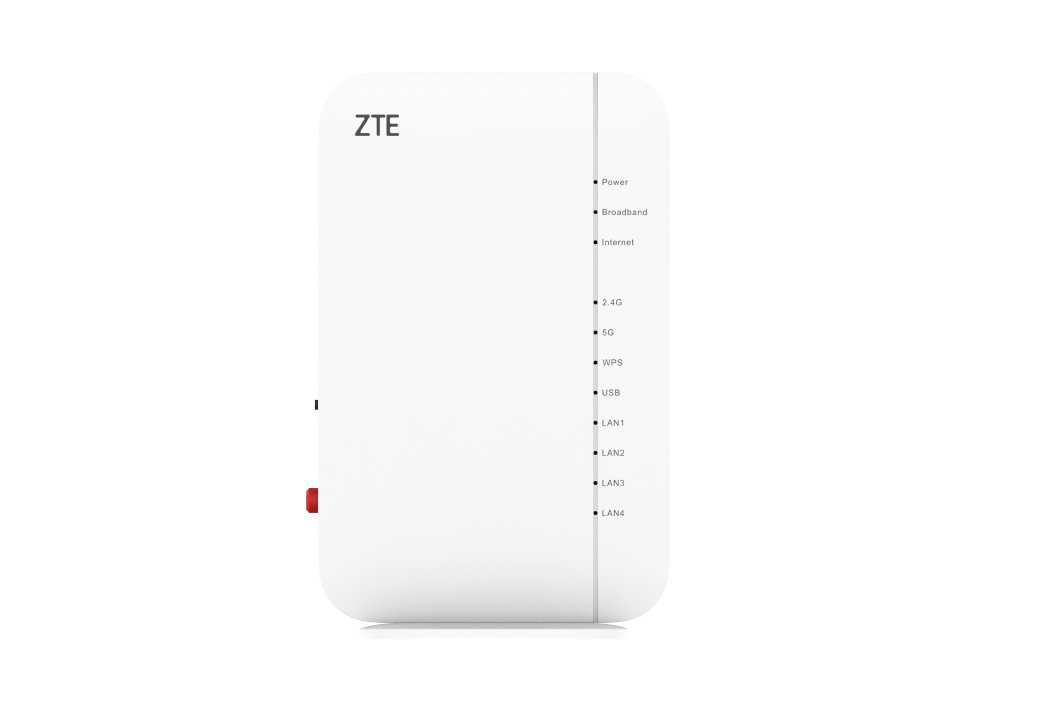

Power, Broadband, Internet, 2.4G, 5G, WPS, USB, LAN1-4
Dimensions (W x H x D)
226 x 32 x 156 mm
Operating Temperature
0℃ ~ +40℃
Humidity
5% - 95% (non-condensing)
Certification
CE, Wi-Fi
