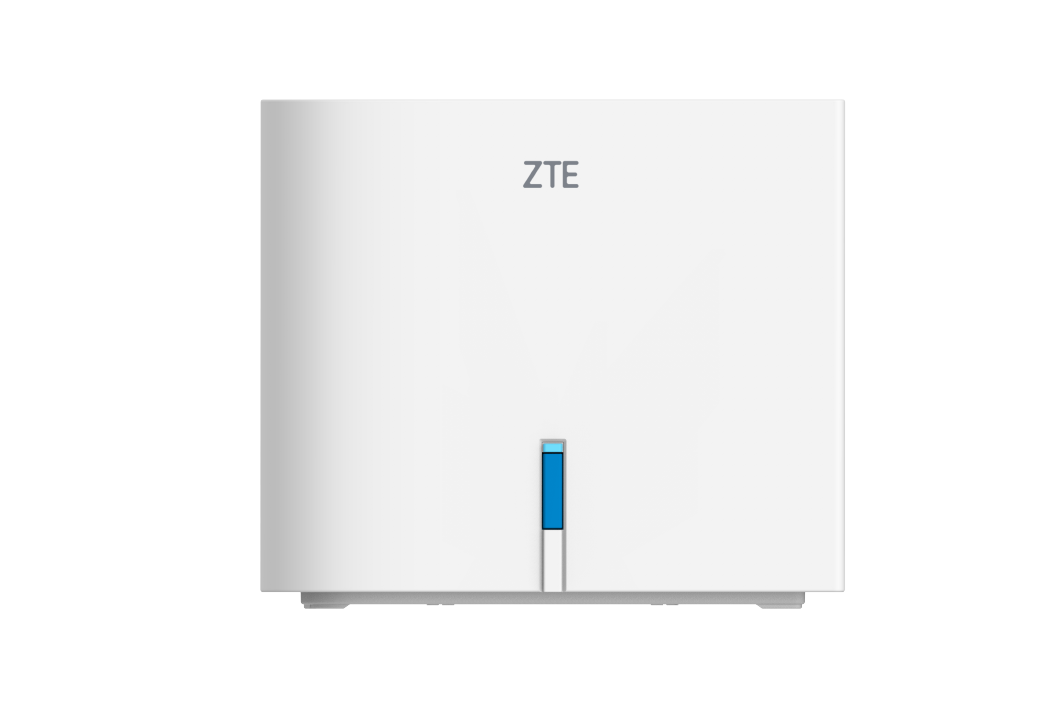

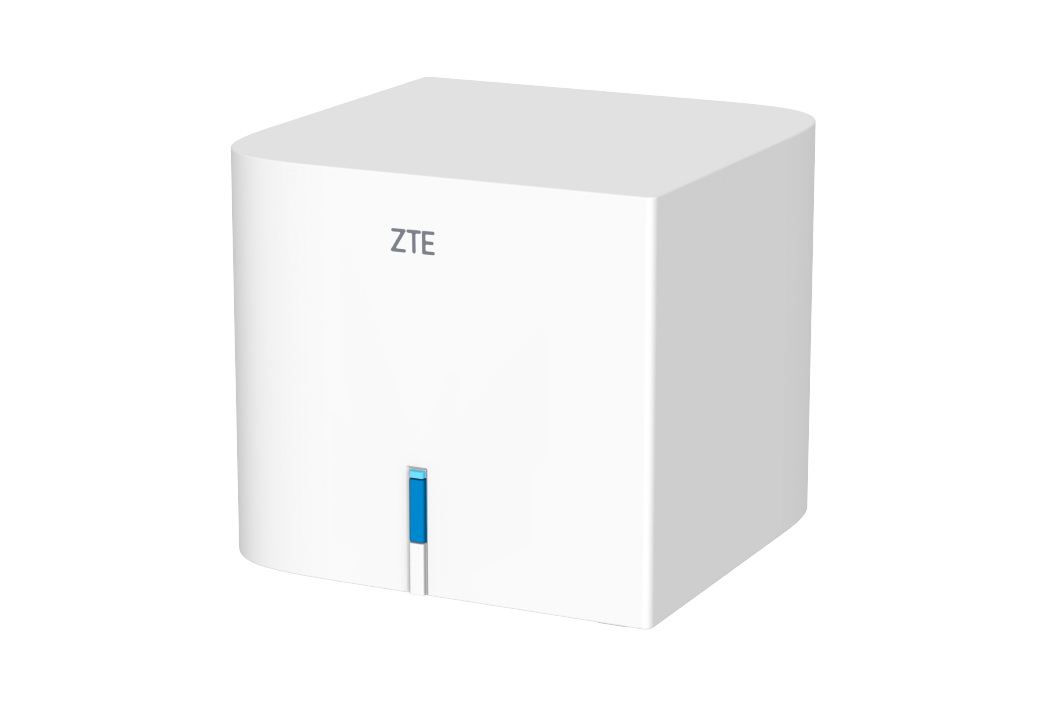

AC1200 Dual-Band Wi-Fi 5 Mesh AP — ZXHN H196A

The ZXHN H196A is an incredible fast AP, with up to 1200 Mbps Wi-Fi and Gigabit Ethernet speeds. It complies with the EasyMesh standard to provide whole-home Wi-Fi coverage. The ultra-high Wi-Fi speed and optimized QoS bring ultimate Wi-Fi experience.

Product Highlights

Whole-Home Wi-Fi Coverage
· Standardized EasyMesh multi-AP network
· Self-healing improves network robustness
Ultimate Wi-Fi Experience
· Dual-band concurrent Wi-Fi up to 1200 Mbps
· Band steering and smart roaming optimize QoS
Stylish IC Design
· Sleek styling blends perfectly with the home
More Flexible Management
· Complies with via TR-069 remote management
· Mobile app and Web GUI simplify user operation

Product Parameters

WAN
GE
LAN

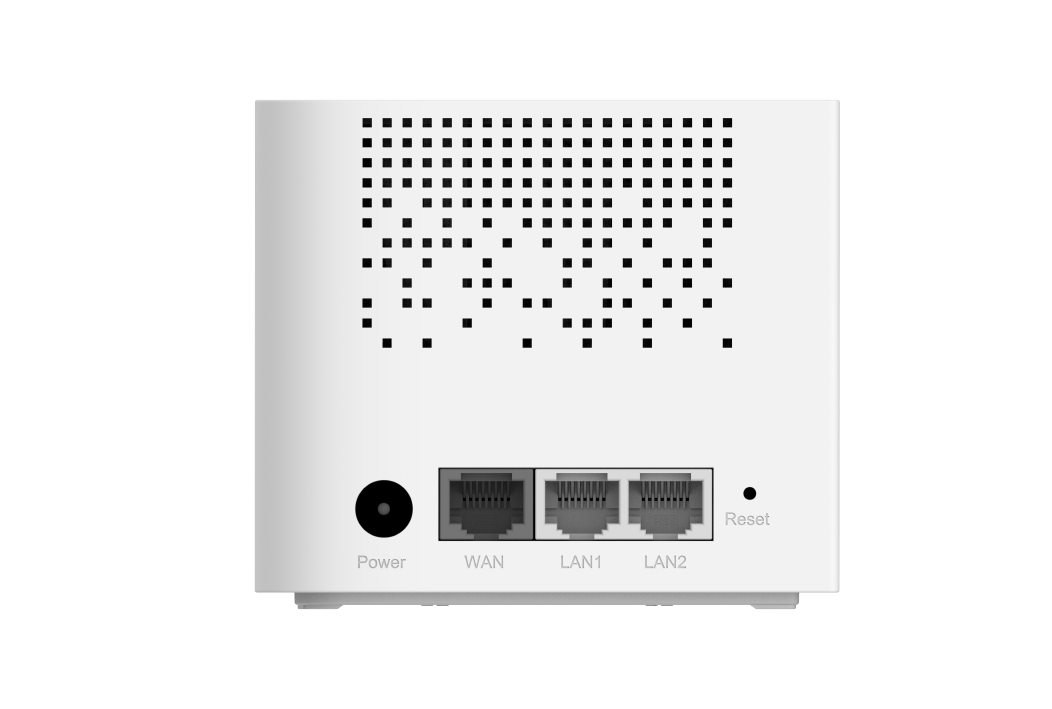

2 x GE RJ-45 ports
2 x 2 802.11n Wi-Fi @2.4GHz
2 x 2 802.11ac Wi-Fi @5GHz
Buttons
WPS, Reset
Power Supply
AC adapter: 12 VDC, 1.0A
LEDs
Status
Dimensions (W x H x D)
95 x 95 x 80 mm
Operating Temperature
0℃ ~ +40℃
Humidity
5% - 95% (non-condensing)
Certification
CE, Wi-Fi, EasyMesh
