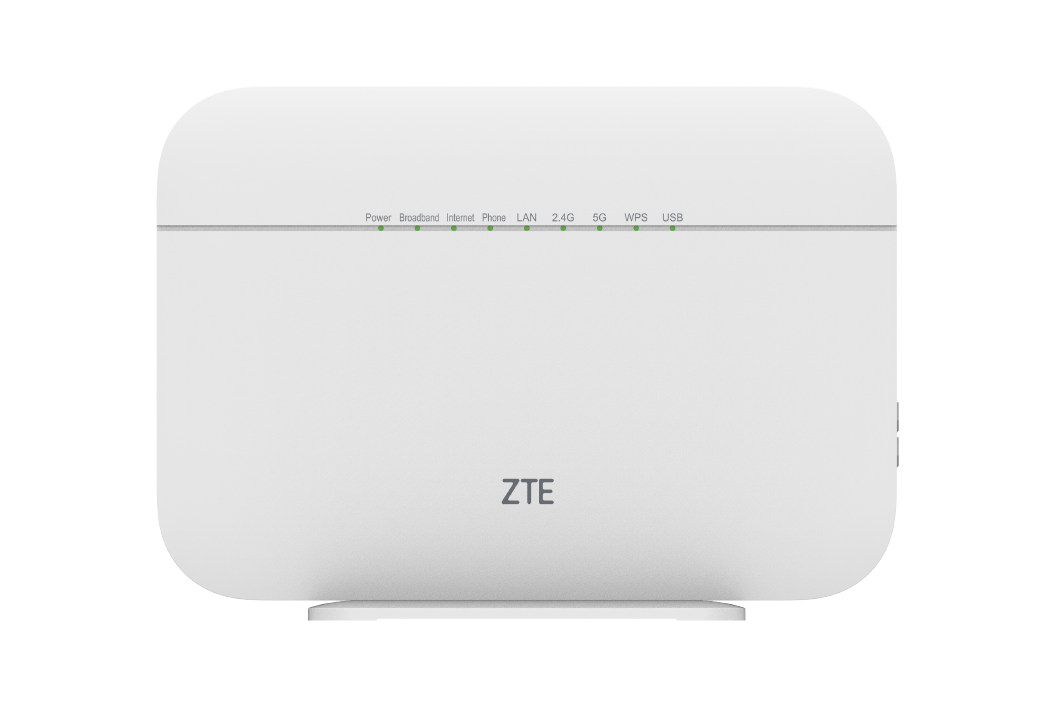

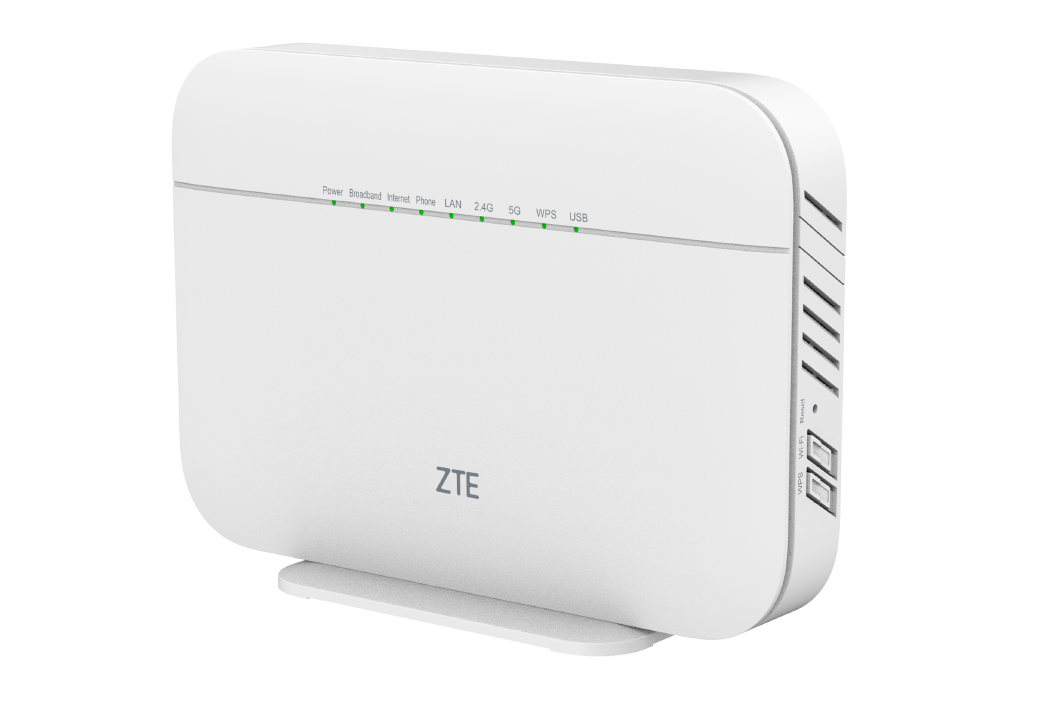

AX3000 Dual-Band Wi-Fi 6 HGW — ZXHN H3600P

The ZXHN H3600P is a home gateway in compliance with Wi-Fi 6 (802.11ax). It can simultaneously provide services at 2.4GHz (2 x 2 MIMO) and 5GHz (2 x 2 MIMO) frequency bands, achieving an ultra-high speed up to 3000 Mbps. The ZXHN H3600P provides a GE WAN port and three GE LAN ports, featuring advanced Quality of Service (QoS), security firewalls, and extensive remote management to deliver reliable and manageable home networks.

Product Highlights

Highly Efficient Wi-Fi 6 (802.11ax)
· Dual-band concurrent Wi-Fi 6 speed up to 3000 Mbps
· OFDMA and uplink/downlink MU-MIMO enable high efficiency
High Reliability
· Full-service access, high bandwidth, high performance, high reliability to meet customers' evolving requirements
More Flexible Management
· Complies with TR-069 remote management
· WEB GUI based management
· TR-064 LAN-side configuration protocol

Product Parameters

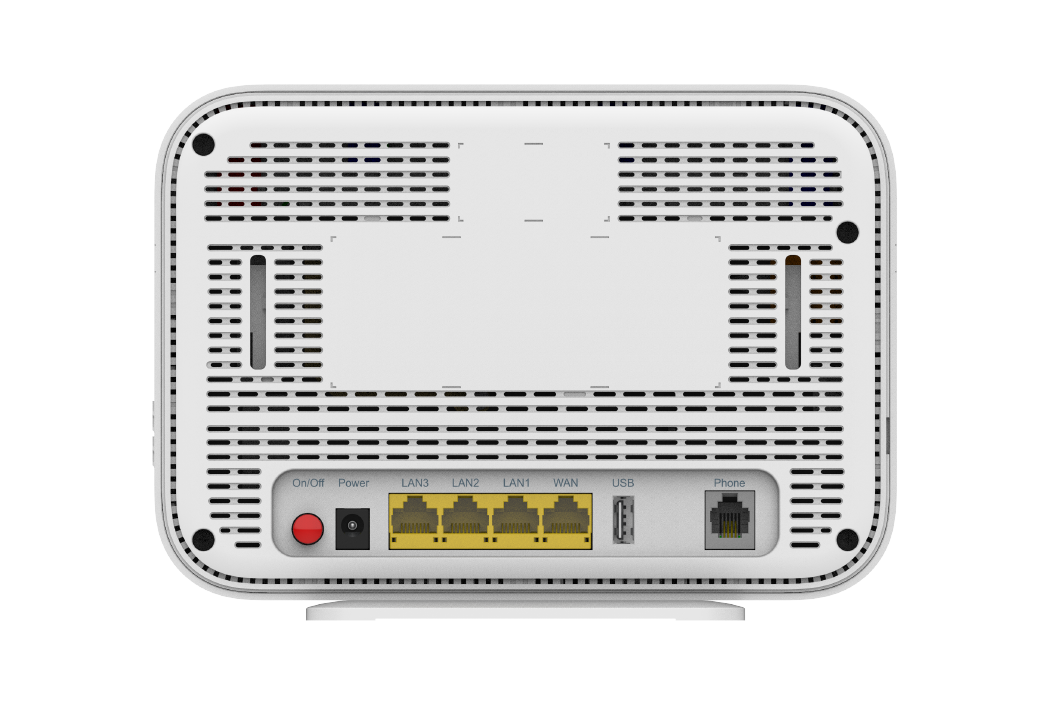

WAN
GE
LAN
3 x GE RJ-45 ports
2 x 2 802.11b/g/n/ax Wi-Fi @2.4GHz
2 x 2 802.11a/n/ac/ax Wi-Fi @5GHz
1 x FXS RJ-11 port
1 x USB 2.0 port
Buttons
Wi-Fi, WPS, Reset, On/Off
Power Supply
AC adapter: 12 VDC, 1.5A
LEDs
Power, Broadband, Internet, Phone, LAN, 2.4G, 5G, WPS, USB
Dimensions (W x H x D)
146.5 x 60 x 203 mm
Operating Temperature
0℃ - 40℃
Humidity
5% - 95% (non-condensing)
Certification
CE, Wi-Fi
