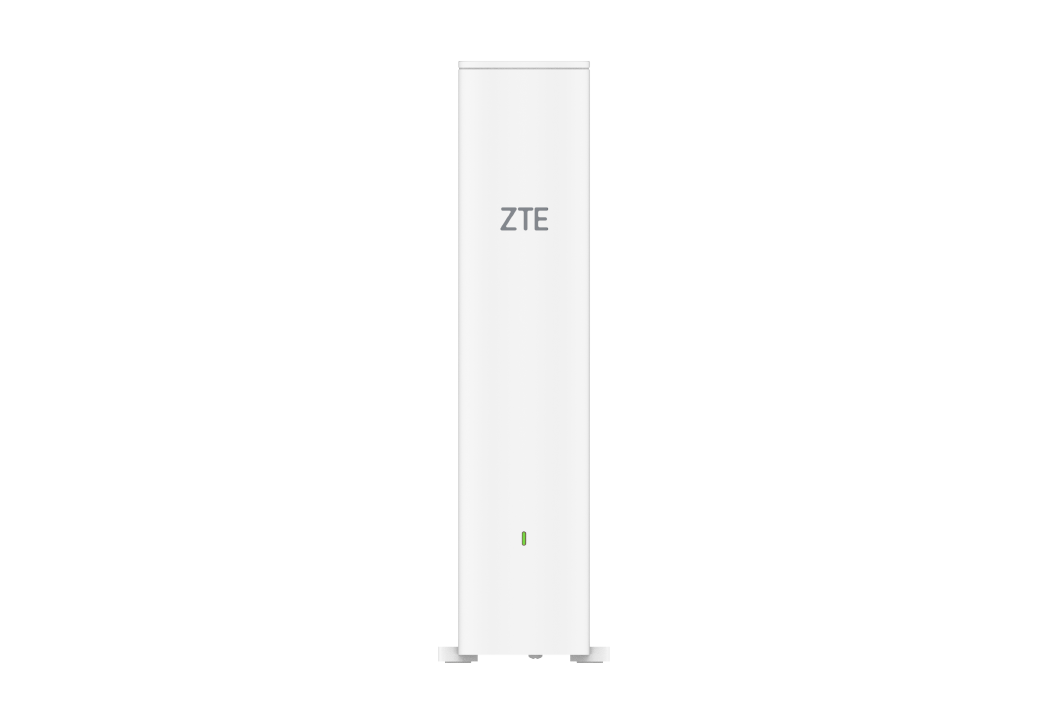

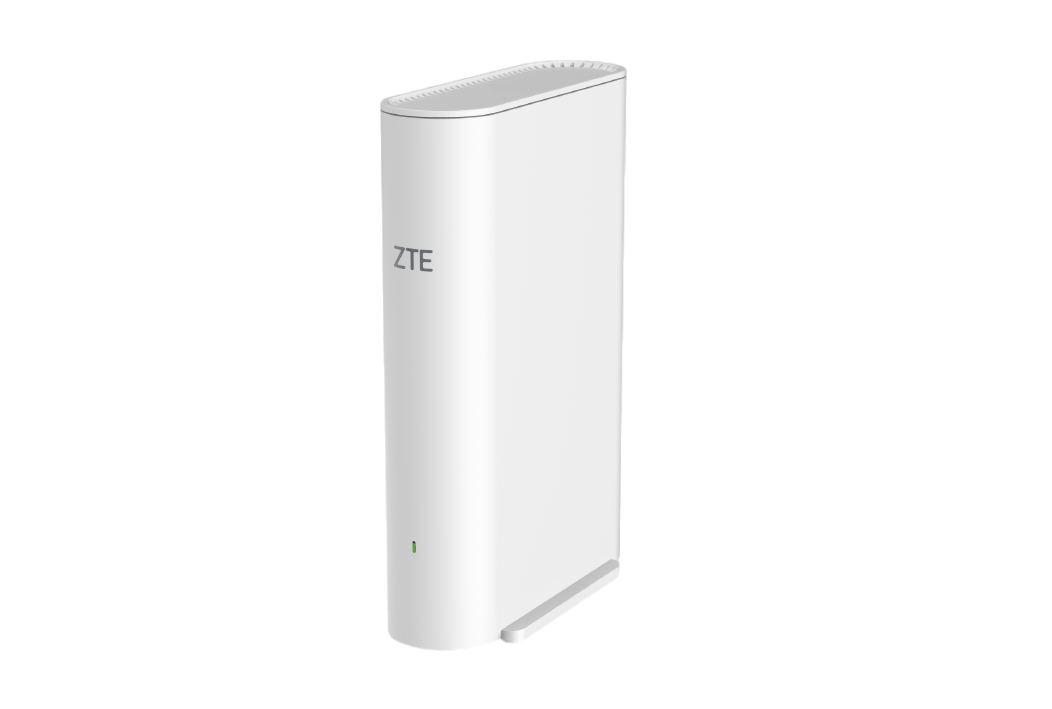

AX3000 Dual-Band Wi-Fi 6 Mesh AP — ZXHN H3601P

The ZXHN H3601P is an advanced home gateway that supports 3000 Mbps dual-band concurrent 11ax Wi-Fi, supporting 160MHz @5GHz. It provides High Speed Internet and IPTV through the GE uplink. The ZXHN H3601P complies with the EasyMesh standard to provide whole-home Wi-Fi coverage. With its ultra-high Wi-Fi speed and optimized QoS, it brings the ultimate Wi-Fi experience.

Product Highlights

Whole-Home Wi-Fi Coverage
· Standardized EasyMesh multi-AP network
· Self-healing improves network robustness
Ultimate Wi-Fi Experience
· MU-MIMO and OFDMA bring better concurrency and higher bandwidth
· Dual-band concurrent Wi-Fi 6 of up to 3000 Mbps
· Band steering and smart roaming optimize QoS
Stylish IC Design
· Sleek styling blends perfectly with the home
· Internal antennas design is more in line with fashion trends
More Flexible Management
· Complies with TR-069 remote management
· Mobile app and Web GUI simplify user operation

Product Parameters

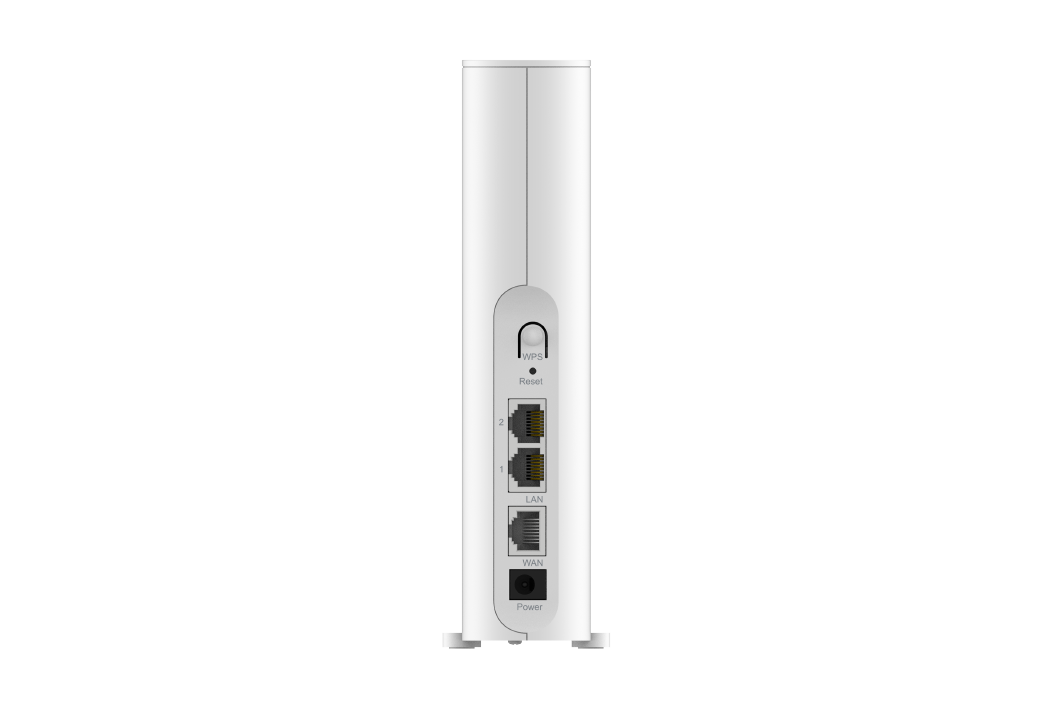

WAN
GE
LAN
2 x GE RJ-45 ports
2 x 2 802.11b/g/n/ax @2.4GHz
2 x 2 802.11a/n/ac/ax 160MHz @5GHz
Buttons
WPS, Reset
Power Supply
AC adapter: 12 VDC, 1.0A
LEDs
Status
Dimensions (W x H x D)
182 x 125 x 52 mm
Operating Temperature
0℃ ~ +40℃
Humidity
5% - 95% (non-condensing)
Certification
CE, Wi-Fi, EasyMesh
