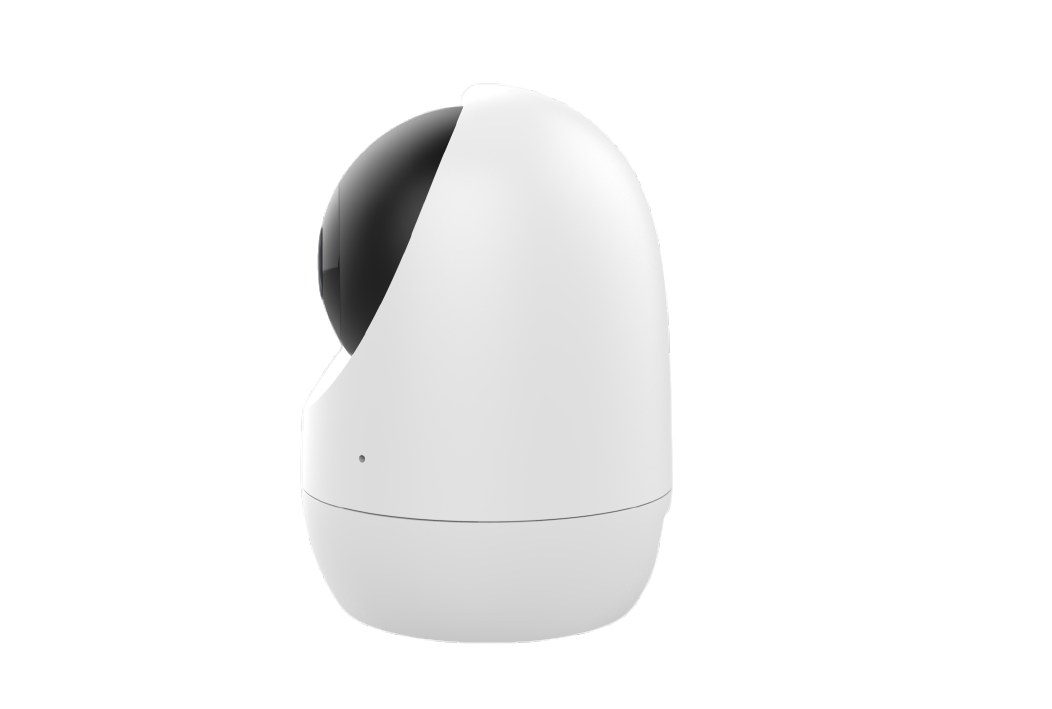

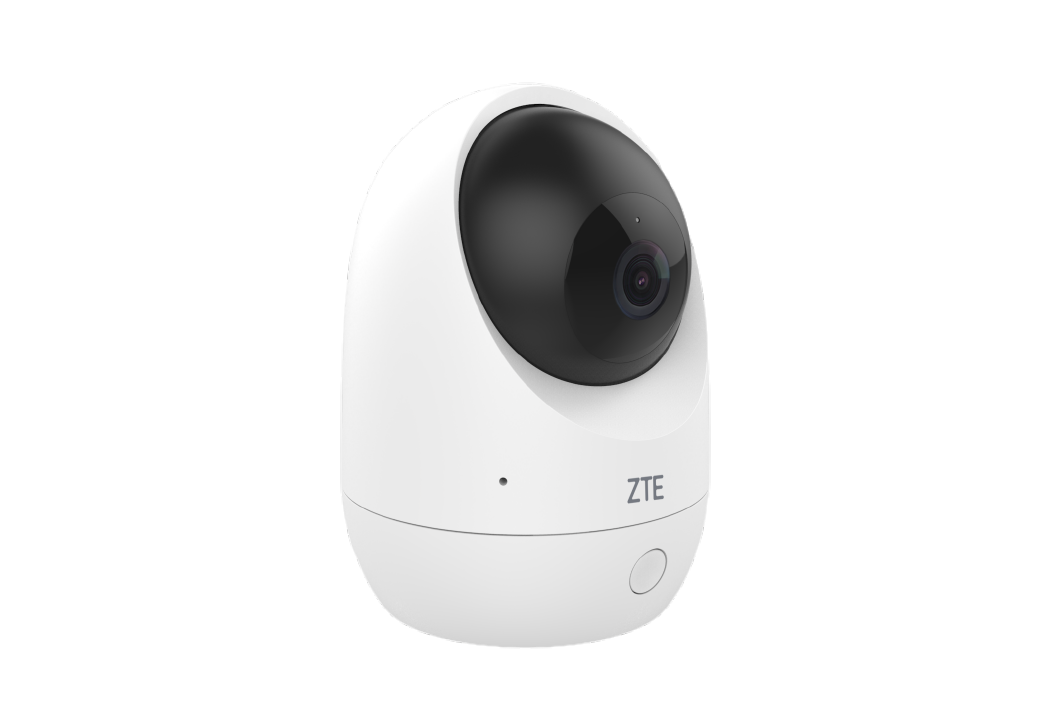

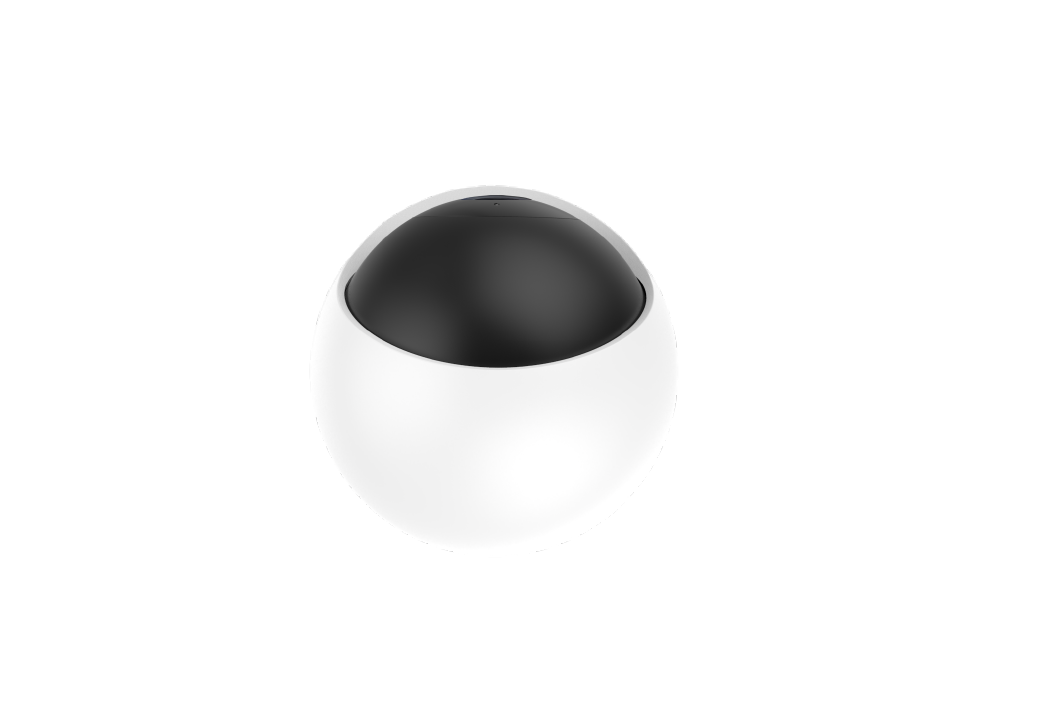

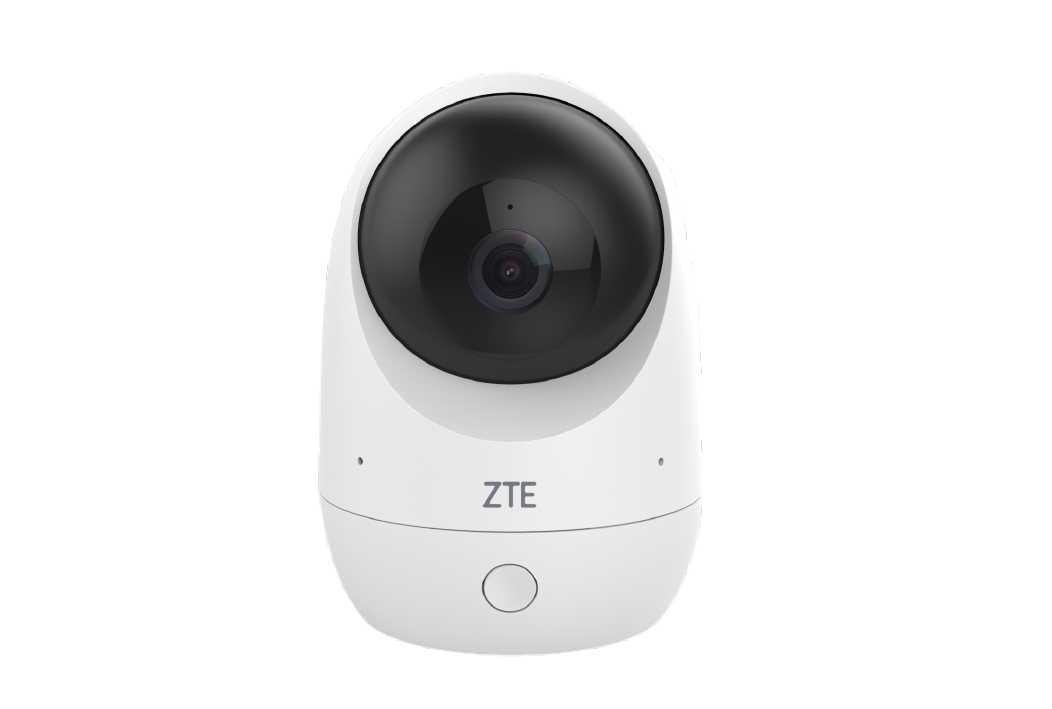

3MP Pan/Tilt Security Camera — ZXHN K534

The ZXHN K534 is part of ZTE's network camera series. Using a 3 million-pixel PTZ camera, it utilizes the H.265 coding format and offers features like human detection and one-click shielding. Primarily intended for indoor use, the ZXHN K534 serves as a wired and wireless dual-connection network camera suitable for home users or stores, enabling remote visualization beyond the premises. It supports real-time video viewing, playback, two-way voice communication, local and cloud storage, as well as event alarms and other functionalities.

Product Highlights

High Reliability
· The camera provides high performance, exceptional reliability, and straight-forward management, with the added capability of supporting remote software upgrades to accommodate customization needs.
· The power adapter offers 2 kV lightning protection, while the ethernet port is equipped with 1.5 kV lightning protection and surge protection.
Easy Installation and Management
· Users can remotely control and manage the camera through the ZLife app, while operators can perform maintenance via the SCP platform.
Innovative Features
· Two-way voice
· Mobile tracking
· Event alarm
· Human & sound & motion detection
· Remote control of pan-tilt angles
· Local and cloud storage, dual backup
· Dynamic digital bandwidth, 3D noise reduction

Product Parameters

Image /Lens
1/2.8 inch CMOS image sensor
F2.0 aperture
355° Pan, 85° Tilt
33ft infrared night vision
Video
H.265 compression
2304 x 1296 @ 20 fps
Audio
Real-time two-way audio
AAC
Storage
Cloud storage
Local storage-TF card/mini SD (up to 256 GB)
Interface

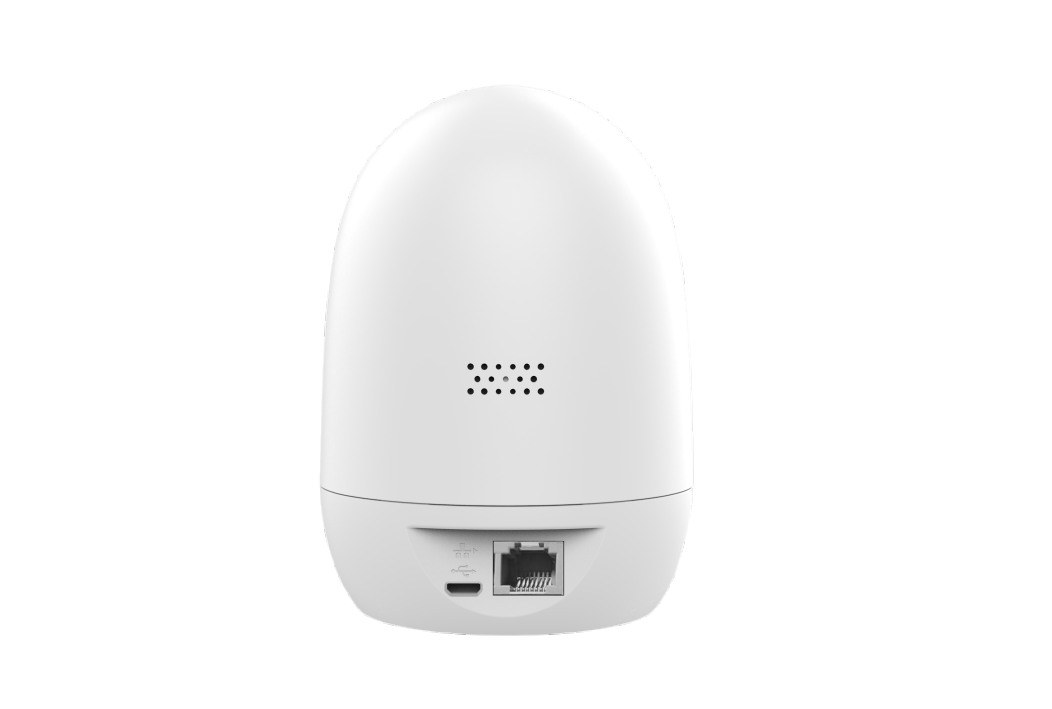

Cable: 1 x FE (1 x RJ 45 10/100M)
Wi-Fi: 2.4GHz Wi-Fi (802.11b/g/n)
Audio: 1 x SPK, 1 x MIC
Dimensions (H x D x W) & Weight
125 x 90 x 90 mm
450g
