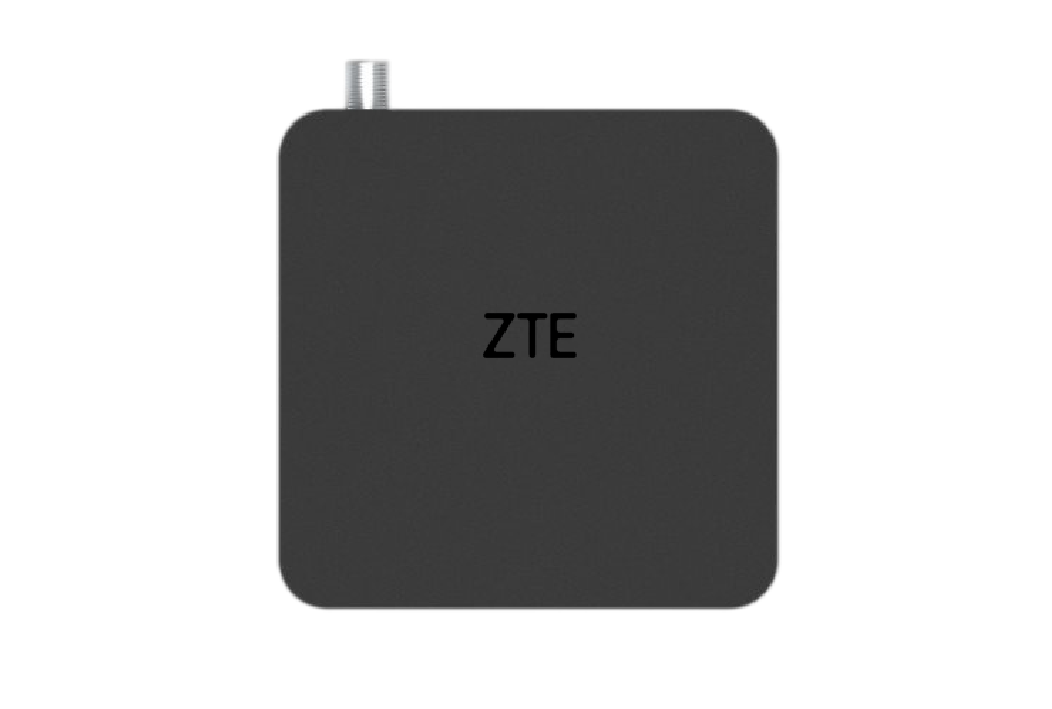

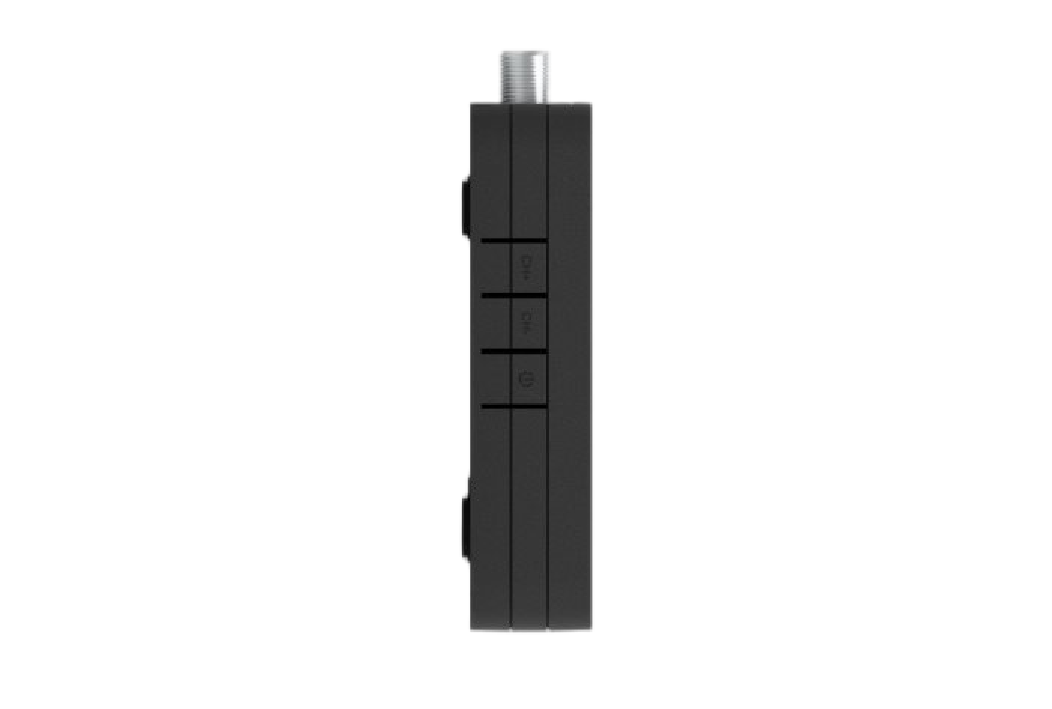

DVB-C Zapper STB — ZXV10 B710C-A14

The ZXV10 B710C-A14 is a HD DVB STB for cable operators. It adopts the latest high performance SoC, supports MPEG-2/MPEG-4/H.264/H.265 high-definition stream decoding and outputting. It fully complies with the DVB-C standard, and supports Nagra advanced security CAS (NASC3.0), helping operators offer stable cable TV services to end users.

Product Highlights

Theatre Experience: · Full HD, H.265/H.264/MPEG-4
· MPEG-2, Dolby pass through

Easy Upgrade: · Supports firmware upgrade by OTA

Product Parameters

Dimensions (L x W x H): 100 x 100 x 25.8 mm

Video: MPEG-2/MPEG-4/H.264/H.265

RF IN: 1 x IEC 169 - 24 F-Type Female

HDMI: 1 x HDMI 1.4a Type A connector

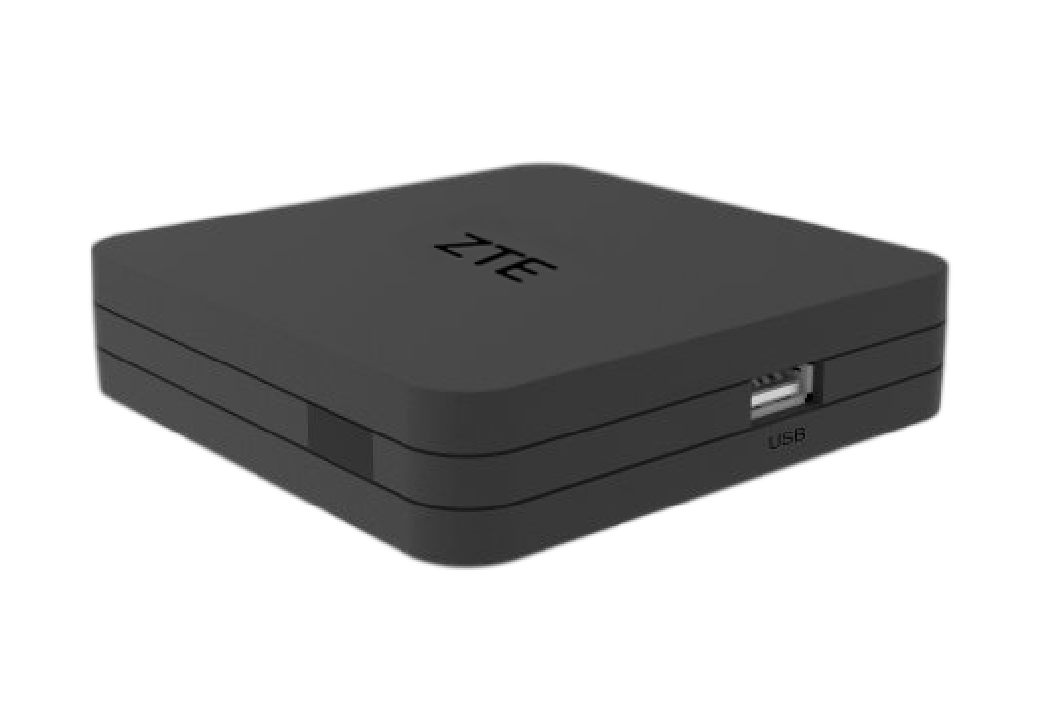

USB: 1 x USB 2.0 Type A

Power: AC-DC adapter, 100-240 VAC, 50/60 Hz, output 12V, 1A
