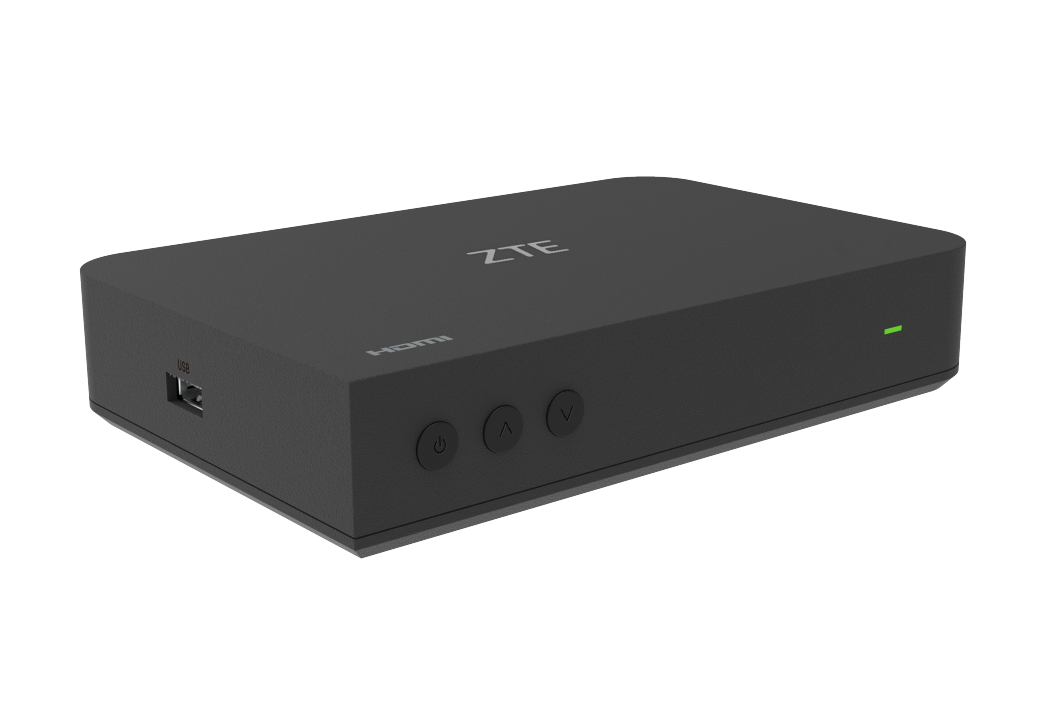

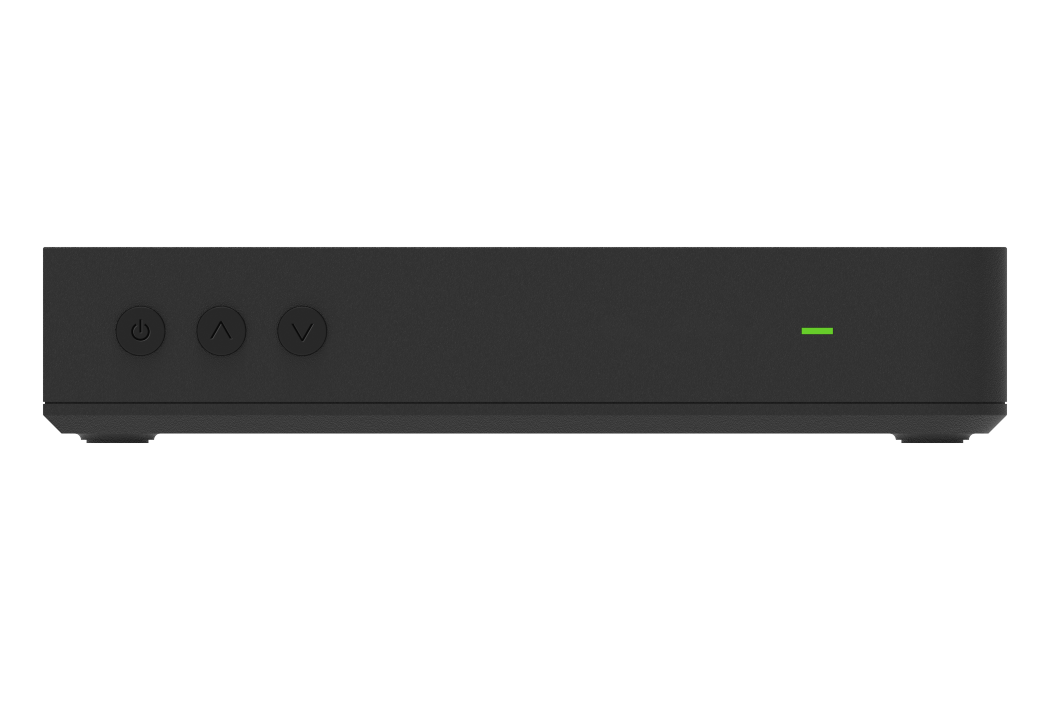

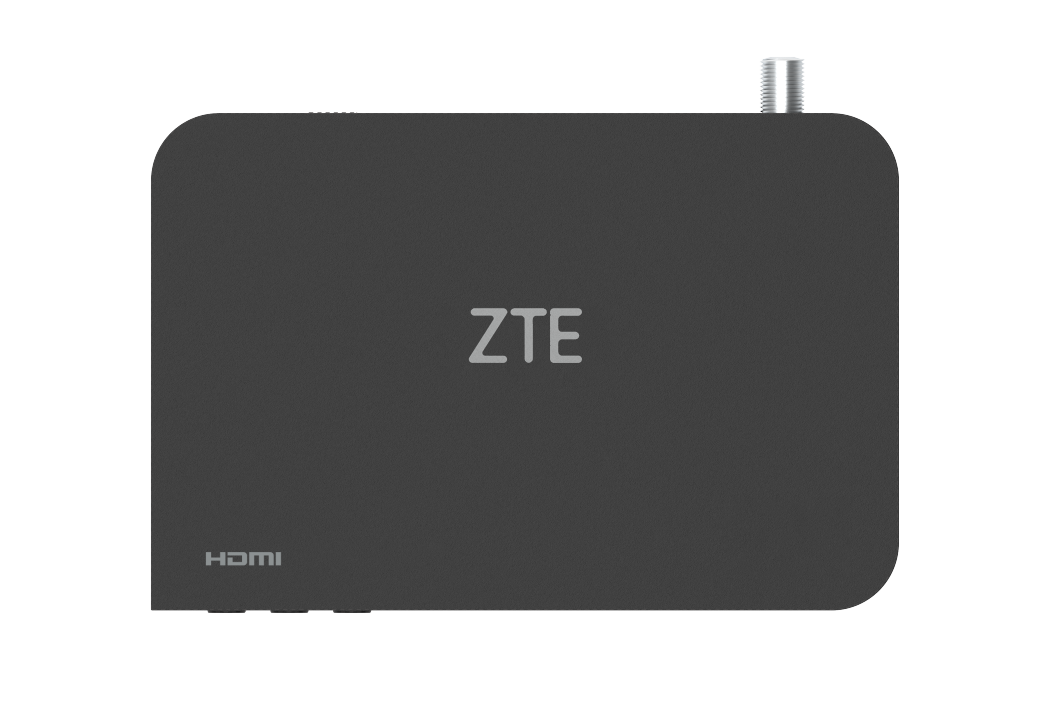

DVB-S Zapper STB — ZXV10 B710S2-A38

The ZXV10 B710S2-A38 is a HD DVB STB for satellite operators. It adopts the latest high performance SOC, supports high definition stream decoding and outputting. It’s fully compliant with the DVB-S and DVB-S2 standard, supports MPEG-2/H.264/HEVC HD video decoding and Nagra advanced security CAS (NASC 3.0), bringing cost-effective services and helping operators offer stable satellite TV services to end users.

Product Highlights

: · Supports MPEG-2/H.264/HEVC HD video decoding

: · Supports HDMI 1.4 with HDCP1.4

: · Supports Nagra advanced security CAS (NASC 3.0)

: · Supports Media player

Product Parameters

Standard: DVB-S/DVB-S2

Video: MPEG-2 MP @ ML
H.264 (MPEG-4 Part 10)
HEVC Main 10

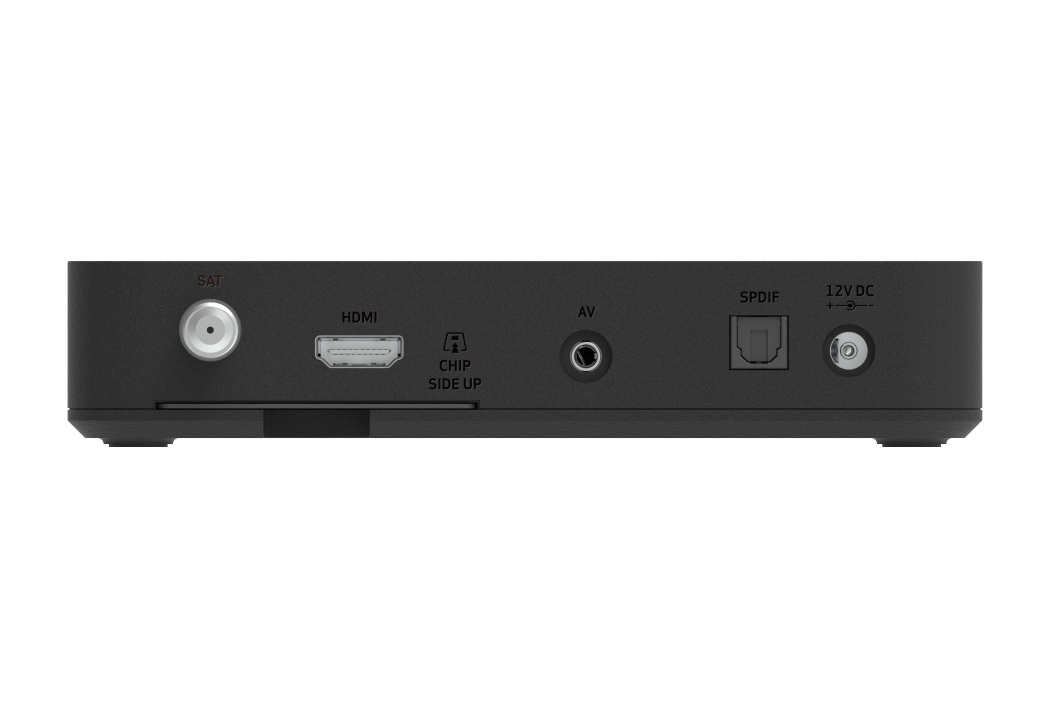

HDMI: 1 x HDMI 1.4a Type A connector, HDCP, HDMI-CEC

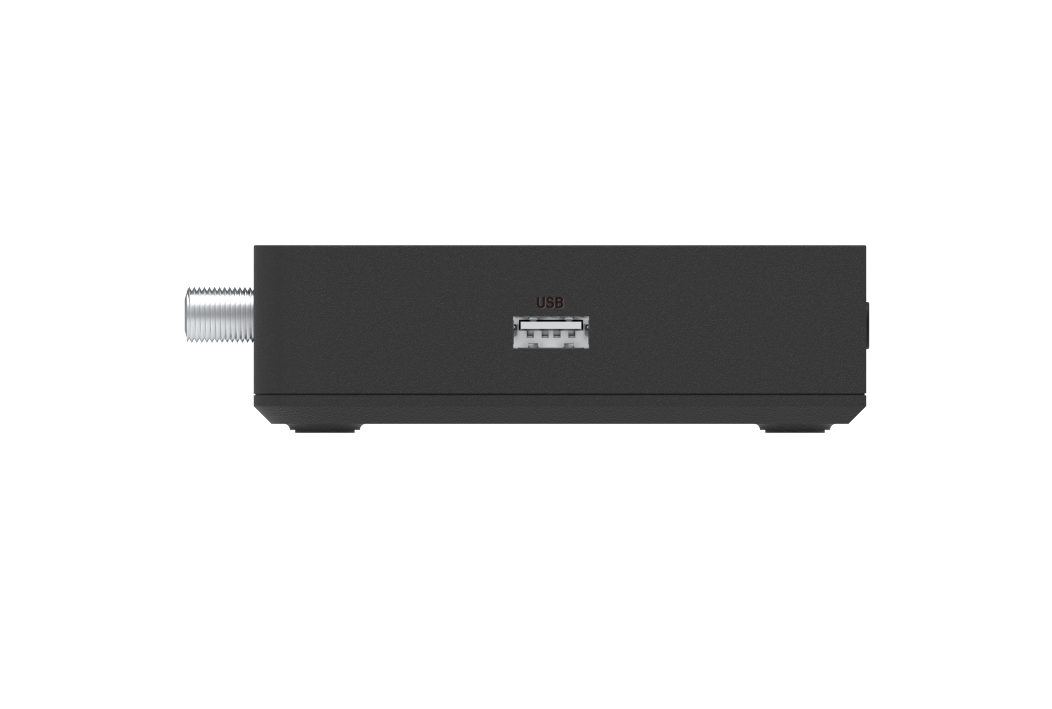

USB: 1 x USB 2.0 Type A

Power: AC-DC adapter, input 100-240 VAC, 50/60 Hz ±10%, output 12V

Dimensions: 155 x 103 x 31.5 mm

Weight: 180g
