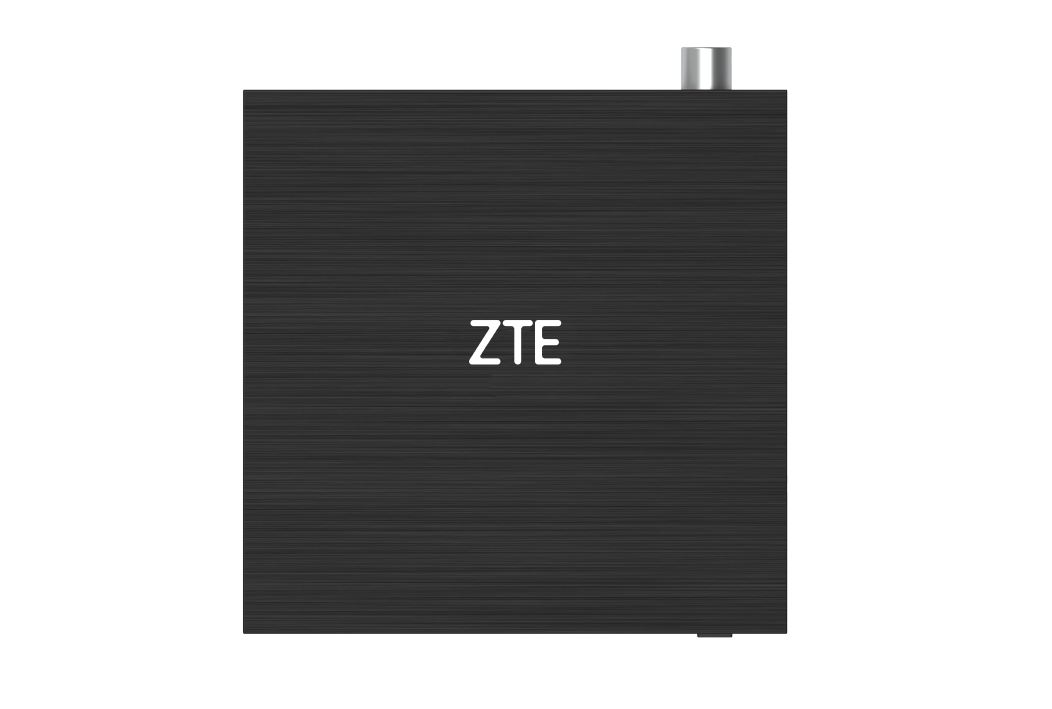

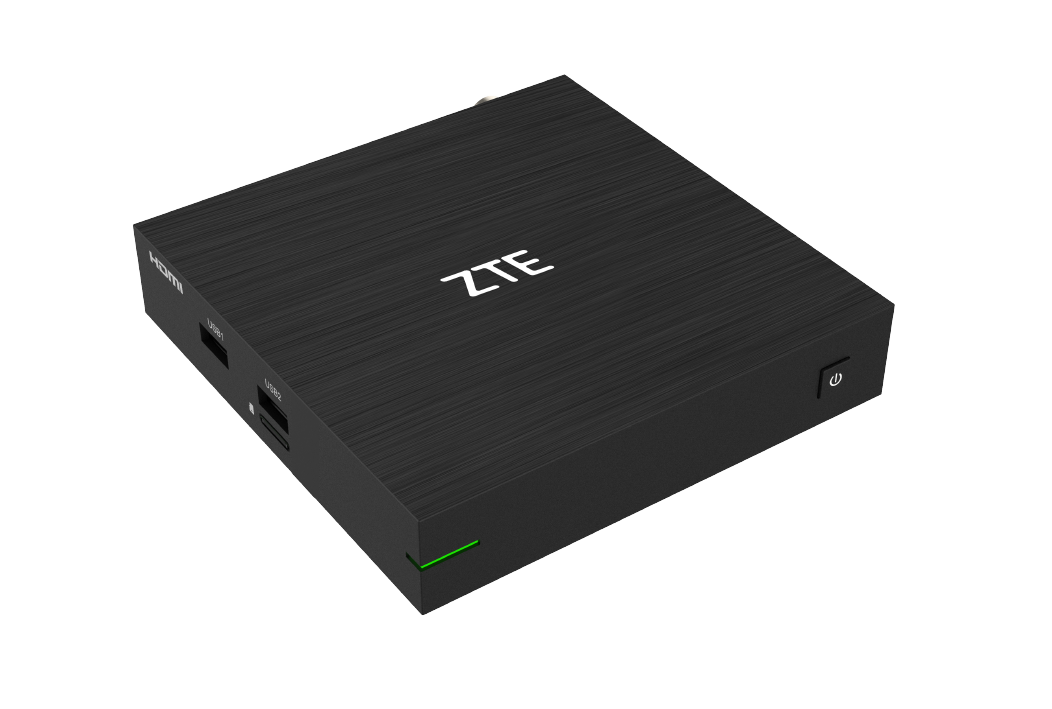

4K Android TV DVB Hybrid STB — ZXV10 B836CT-A15

The ZXV10 B836CT-A15 is an UHD STB that is equipped with the latest high performance and low power SoC. It supports Google CBS and complies with the DVB-C/T/T2 standard. It supporting HEVC and AV1 decoding. It provides fluent and responsive user experiences, helping operators offer stable services to users.

Product Highlights

: · Supports 4K @ 60 fps

: · Supports AV1/MPEG-2/H.264/HEVC video decoding

Product Parameters

Dimensions: 120 x 120 x 23 mm

Video: VP9; AV1; HEVC; H.264

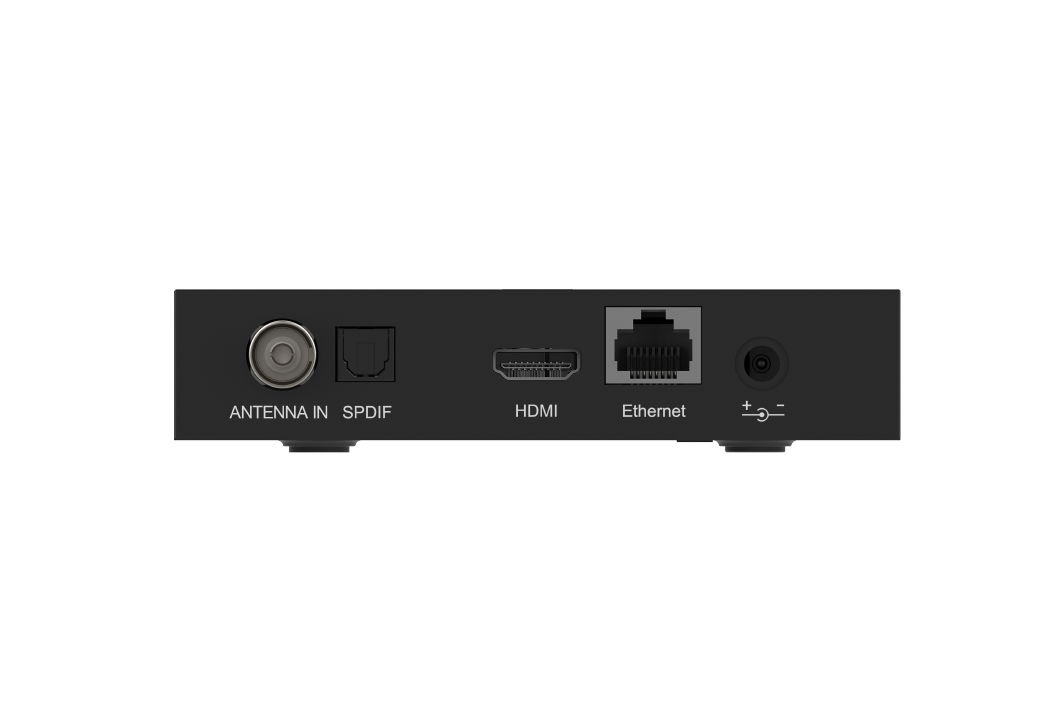

RF IN: Female, 75 ohm IEC61169-2

Ethernet: 10/100 Base-T Ethernet RJ45

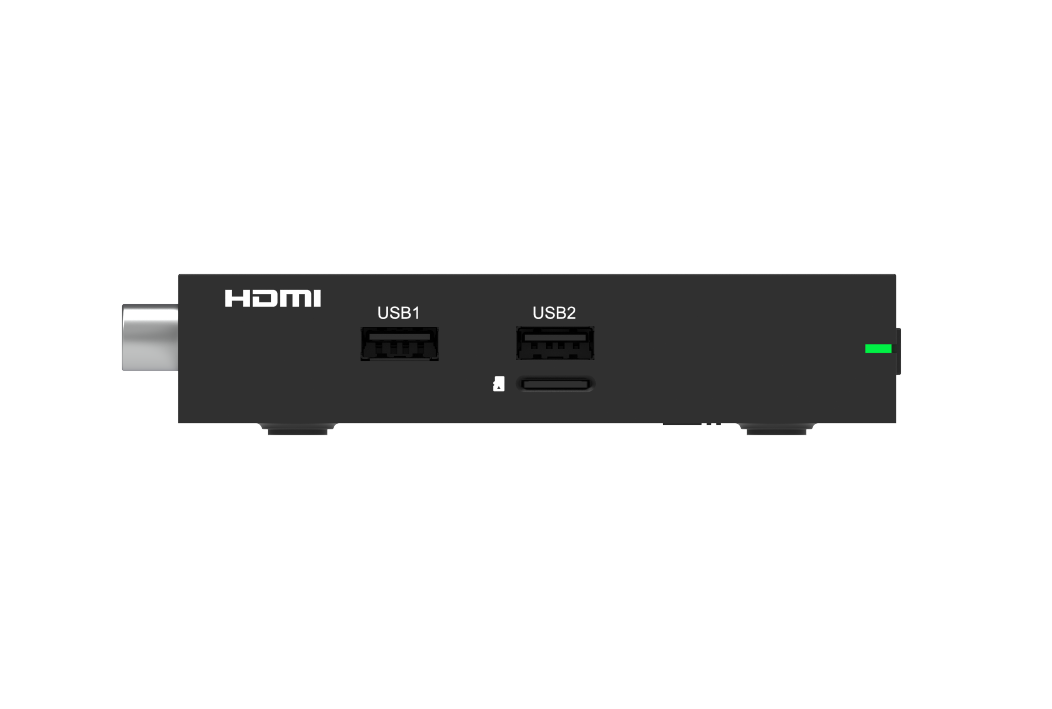

USB: 2 x USB 2.0

HDMI: 1 x HDMI

SPDIF: 1 x S/PDIF Optical

SD reader: 1 x Micro-SD reader

OS: Android TV

Power: Power mode: AC - DC adapter
Input voltage: 100 - 240 VAC, ± 10%, 50/60 Hz
Output voltage: 12V
