4K DVB Hybrid STB — ZXV10 B836CTSI-A21

The B836CTSI-A21 is an UHD STB that is equipped with the latest high performance and low power SOC and complies with the DVB-C/T/T2/standard, supporting HEVC and AV1 decoding. It provides fluent and responsive user experiences, helping operators offer stable services to users.

Product Highlights

: · Supports 4K @ 60 fps

: · Supports MPEG-2/H.264/HEVC video decoding

: · Supports BT5.0

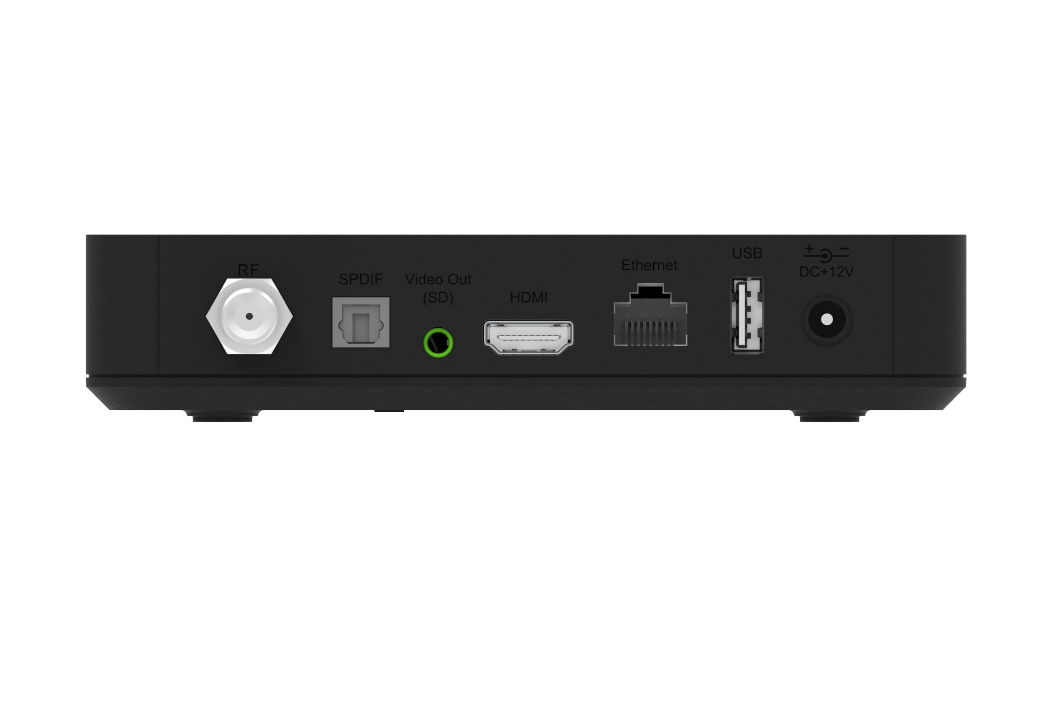

Product Parameters

Video: VP9; AV1; HEVC; H.264

RF IN: 1 x F-Type (IEC 169-2, Female)

Ethernet: RJ45 Ethernet, 10/100 BASE-T

USB: 1 x USB 2.0

HDMI: HDMI 2.0b/HDCP 2.2

SPDIF: S/PDIF Optical

Others: 12 VDC power in

OS: Android TV

Power: 1 x AC to DC power adapter, 12V/1.0A
