Product Overview

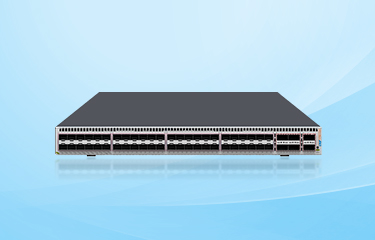

ZXR10 5960
The ZXR10 5960 Series is the next-generation carrier-grade data center TOR (Top of Rack) switch with ultra-big switching capacity and low latency. It provides high density 10GE/25GE/ 40GE/100GE interfaces, carrier-class reliability and superior scalability. It supports extensive data center service features such as MC-LAG /VXLAN (Virtual eXtensible Local Area Network)/ SDN (Software Defined Network)/ Front-to-back airflow. It can work with the ZXR10 9900/9900-S Series switches to build elastic, virtualized, high-quality switching network that meets the requirements of cloud-computing data centers.
Step into SDN Era
● Support EVPN VXLAN protocol and the large L2 network
● Fast deployment and easy management with SDN Controller
Highly Reliable MC-LAG Technology
● Support link aggregation across devices and provides the device level reliability
● Independent of the control plane and the management plane provides higher reliability
● Can be upgraded separately without interrupting the current network service
Carrier-Grade Reliability and Multidimensional Security
● Support dual redundant modular fans and dual modular power supplies
● Support link aggregation, ECMP, VRRPE and other networking schemes to achieve load sharing and active/standby protection
Green Energy Saving
● The strict design of front and rear air ducts perfectly matches the heat dissipation system of the machine room
● Support intelligent speed regulation of fan, energy saving and consumption reduction
Learn more
Specification
| Specification | Parameter | |
|---|---|---|
| Dimensions (H * W * D) mm | ZXR10 5960-52TM：43.6*442*440 ZXR10 5960-32DL：43.6*442*440 ZXR10 5960-64DL：43.6*442*440 ZXR10 5960-4M-HC：88.1*444*600 ZXR10 5960-32LC-H：43.6*442*440 ZXR10 5960-64DL-H：43.6*442*440 ZXR10 5960-72DL-H：43.6*442*440 ZXR10 5960-72NL-H：43.6*442*440 ZXR10 5960-56QU-HC：43.6*442*440 |
|
| Interface Type | ZXR10 5960-52TM：GE,10GE ZXR10 5960-32DL：10GE,40GE ZXR10 5960-64DL：10GE,40GE ZXR10 5960-4M-HC：10GE,25GE,40GE,100GE ZXR10 5960-32LC-H：10GE,40GE ZXR10 5960-64DL-H：10GE,40GE ZXR10 5960-72DL-H：10GE,40GE ZXR10 5960-72NL-H：10GE,40GE ZXR10 5960-56QU-HC：25GE,100GE |
|
| Power supply mode | ZXR10 5960-52TM/ZXR10 5960-32DL, ZXR10 5960-64DL, ZXR10 5960-32LC-H, ZXR10 5960-64DL-H, ZXR10 5960-72DL-H, ZXR10 5960-72NL-H, ZXR10 5960-56QU-HC：DC：-48V；AC：110V/220V；HVDC：240V ZXR10 5960-4M-HC：DC：-48V；AC：110V/220V；HVDC：240V/336V |
|
| Operating temperature | ZXR10 5960-52TM：-5~45℃ ZXR10 5960-32DL：-5~45℃ ZXR10 5960-64DL：-5~45℃ ZXR10 5960-4M-HC：-5~40℃ ZXR10 5960-32LC-H：-5~45℃ ZXR10 5960-64DL-H：-5~45℃ ZXR10 5960-72DL-H：-5~45℃ ZXR10 5960-72NL-H：-5~45℃ ZXR10 5960-56QU-HC：-5~40℃ |
|
| Operating humidity | 10%~90% | |
