Product Overview

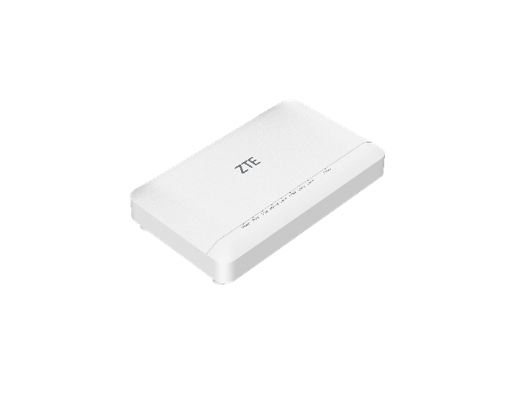

ZXHN F620
ZXHN F620 is a gigabit VoIP GPON gateway.
The ZXHN F620 is a Gigabit VoIP GPON Gateway. It comes with four Gigabit Ethernet LAN ports, one phone port.
It is ideal for FTTH and also operates well in conjunction with separate RGW devices such as routers and Wi-Fi access points to provide flexible triple-play services. The integration of TR-069 technologies facilitates the automatic installation and automatic provisioning of services.
Product Parameter
| Model | Parameter | |
|---|---|---|
| WAN | GPON | |
| LAN | 4xGE, 1xFXS | |
| Buttons | Reset, On/Off | |
| LEDs | Power, PON, LOS, Internet, LAN1, LAN2, LAN3, LAN4, Phone | |
| Power Supply | 12V DC, 1.0A | |
| Dimensions | 185 mm*32 mm*110 mm (W*D*H) | |
| Net Weight | 240g | |
| Operating Temperature | 0°C - 40°C | |
| Humidity | 5% - 95% | |
| Certification | CE; RoHS | |
