Product Overview

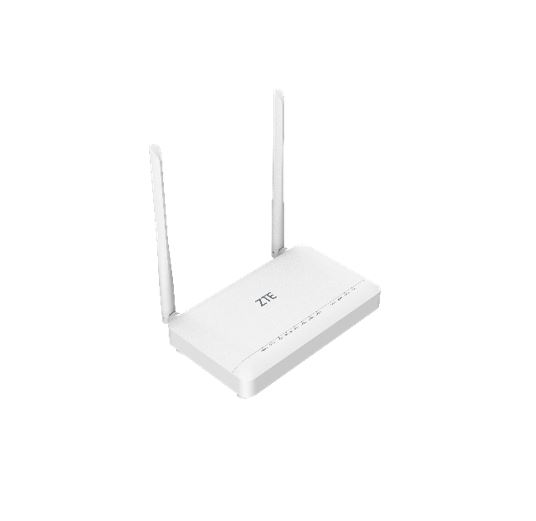

ZXHN F660
ZXHN F660 is a N300 gigabit GPON gateway.
The ZXHN F660, a GPON optical network terminal (ONT) for home users, is designed for fiber to the home (FTTH) scenarios and supports desktop mounting and wall mounting.
It comes with 4GE LAN ports, one phone port, one USB port, one IEEE 802.11 b/g/n(2x2) Wi-Fi interface with two external antennas. Home users can easily access voice services, video services and many other kinds of high-speed broadband services by its enriched interfaces.
Product Parameter
| Model | Parameter | |
|---|---|---|
| WAN | GPON | |
| LAN | 4xGE,1xFXS,1USB; 2x2 802.11b/g/n Wi-Fi @2.4GHz | |
| Buttons | Reset, On/Off, WPS, Wi-Fi | |
| LEDs | Power, PON, LOS, Internet, Wi-Fi, LAN1-4, Phone, WPS, USB | |
| Power Supply | 12V DC, 1.0A | |
| Dimensions | 185 mm*32 mm*110 mm (W*D*H) | |
| Net Weight | 260g | |
| Operating Temperature | 0°C - 40°C | |
| Humidity | 5% - 95% | |
| Certification | CE; Wi-Fi; RoHS | |
