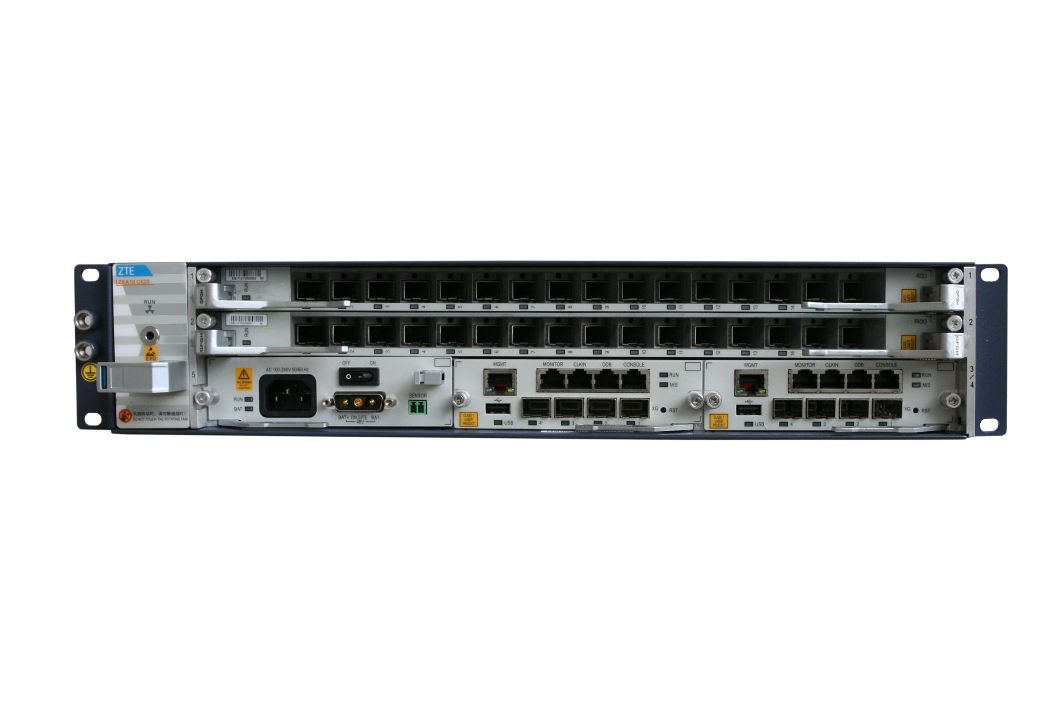

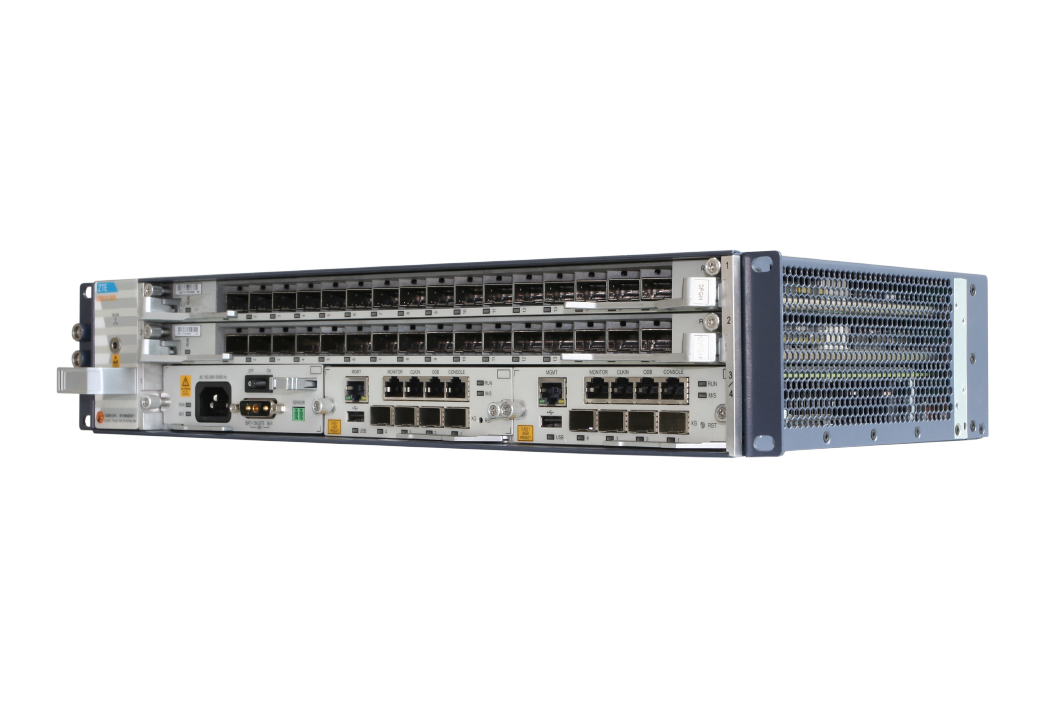

Small-Capacity PON OLT — ZXA10 C620

The ZXA10 C620 is a 2U high PON OLT based on the TITAN platform. It has a compact industrial design and uses a state-of-the-art fully-distributed and programmable router architecture to support 4K/8K/VR, FMC, and SDN/NFV/virtualization in a wide range of scenarios.

Product Highlights

2U-high, supports up to 32 PON ports
· Supports GPON, XG-PON, XGS-PON and Combo PON, Any-PON
· Supports up to 32 PON ports for 2,048 FTTH users
Industry's first 16-port 10G PON/Combo PON
· 5-in-1 chip, 16 ports per chip, industry's highest density
· 31.8% less power consumption than the CoC v8

Product Parameters

Dimensions (H x W x D)
88.1 x 482.6 x 283.5 mm
Access Features
32 x GPON, 10G PON, Any-PON or Combo PON ports
Uplink Interface Card
4 x 10GE/GE uplink per card
Subscriber Card Density
16 x GPON/XG-PON/XGS-PON/Combo PON/Any-PON ports per card
16 x 10GE P2P per card
24/48 x GE P2P per card
Environmental Conditions
Operating temperature: -40℃ ~ +65℃
Operating humidity: 5% - 95%, non-condensing
Power Supply
DC operating voltage: -48 V (± 20%), or -60 V (± 20%)
AC operating voltage: 100 V - 240 V

Resources

ZXA10 C620 Product Highlights

Preview Download
